     Waveguide to Coaxial Adapter WR229(BJ40)

     Application


    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector   Type

    (Waveguide)

    Power(W)

    Connector

    Type

    5o60WR229032249NK

    3.22 ~ 4.9

    0.15

    1.15

    WR229

    (BJ40)

    100

    N Female

    5o60WR229032249SK

    3.22 ~ 4.9

    0.15

    1.15

    WR229

    (BJ40)

    50

    SMA Female

    Basic Specifications

    Power

    50W/100W

    Impedance

    50Ω

    Peak   Power

    3W

    Operating   Temperature

    -55 ~ +85℃

    Connector   Type

    (Waveguide)

    WR229(BJ40)

    Storage Temperature

    -55~+125℃

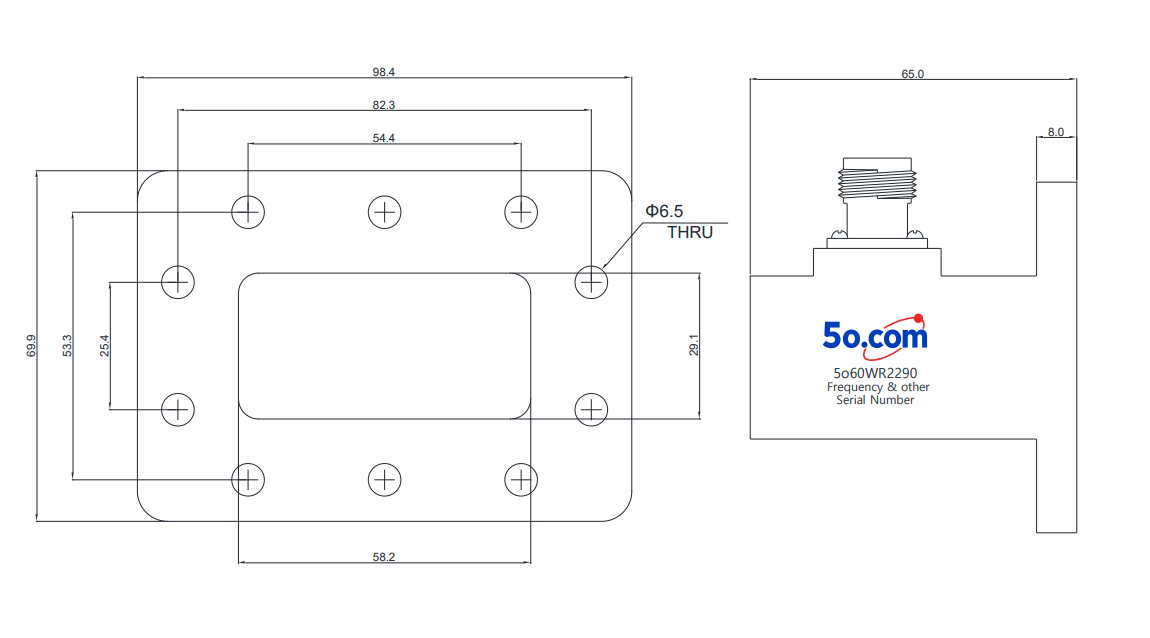

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
