     Waveguide to Coaxial Adapter WR159 (BJ58)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector   Type

    (Waveguide)

    Connector

    Type

    5o60WR1594467705NK

    4.67 ~ 7.05

    0.3

    1.25

    WR159

    (BJ58)

    N Female

    5o60WR1594467705SK

    4.67 ~ 7.05

    0.3

    1.25

    WR159

    (BJ58)

    SMA Female

    Basic Specifications

    Power

    100W

    Impedance

    50Ω

    Peak Power

    3KW

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR159(BJ58)

    Storage Temperature

    -55~+125℃

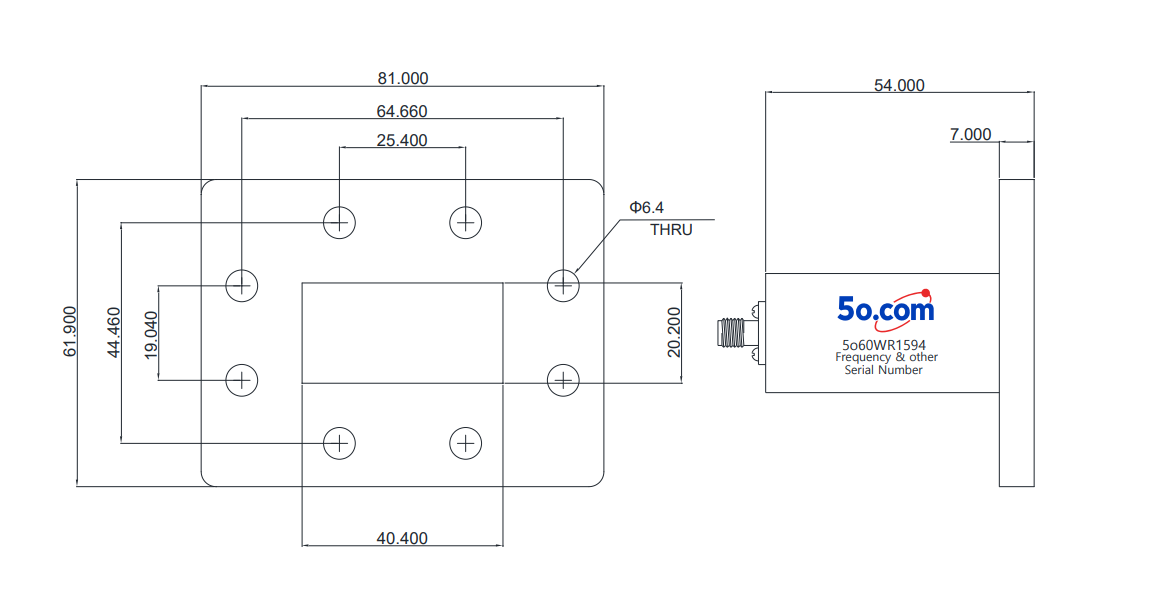

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
