    Directional Coupler 350 ~ 520MHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o551433703505205NK

    350 ~ 520

    5±0.8

    2.1

    20

    1.25

    N Female

    5o551433703505206NK

    350 ~ 520

    6±0.8

    1.7

    20

    1.25

    N Female

    5o551433703505207NK

    350 ~ 520

    7±0.8

    1.4

    20

    1.25

    N   Female

    5o551433703505208NK

    350 ~ 520

    8±0.8

    1.0

    20

    1.25

    N   Female

    5o5514337035052010NK

    350 ~ 520

    10±1.0

    0.8

    20

    1.25

    N   Female

    5o5514337035052013NK

    350 ~ 520

    13±1.0

    0.5

    20

    1.25

    N   Female

    5o5514337035052015NK

    350 ~ 520

    15±1.2

    0.4

    20

    1.25

    N   Female

    5o5514337035052020NK

    350 ~ 520

    20±1.2

    0.22

    20

    1.25

    N   Female

    5o5514337035052030NK

    350 ~ 520

    30±1.5

    0.2

    20

    1.25

    N   Female

    5o5514337035052040NK

    350 ~ 520

    40±1.5

    0.2

    20

    1.25

    N   Female


     Basic Specifications

    Dimension

    143*37*20mm

    Connector   Type

    N Female

    Power

    200W

    Operating   Temperature

    -20 ~ +70℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

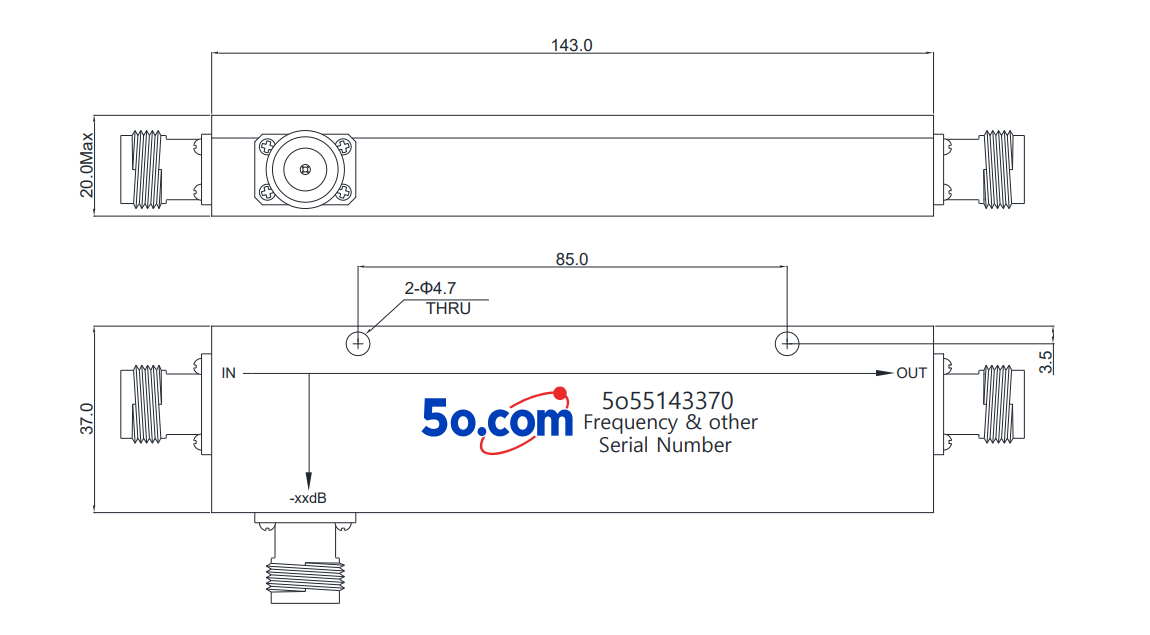

    Overall Dimension(mm)


                          Tolerances: ±2% unless otherwise stated.
