    Directional Coupler 9.0 ~ 10.0GHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o551005609106100SK

    9.0 ~10.0

    6±0.7

    0.2

    15

    1.1

    WR90(BJ100)

    CP: SMA Female

    5o5510056091010100SK

    9.0 ~10.0

    10±0.7

    0.2

    15

    1.1

    WR90(BJ100)

    CP: SMA   Female

    5o5510056091020100SK

    9.0 ~10.0

    20±0.7

    0.2

    15

    1.1

    WR90(BJ100)

    CP: SMA   Female

    5o5510056091030100SK

    9.0 ~10.0

    30±0.7

    0.2

    15

    1.1

    WR90(BJ100)

    CP: SMA   Female

    5o5510056091040100SK

    9.0 ~10.0

    40±0.7

    0.2

    15

    1.1

    WR90(BJ100)

    CP: SMA Female

    5o5510056091050100SK

    9.0 ~10.0

    50±0.7

    0.2

    15

    1.1

    WR90(BJ100)

    CP: SMA Female

    Basic Specifications

    Dimension

    100*41.3*56.8mm

    Impedance

    50Ω

    Average   Power

    5KW

    Operating   Temperature

    -55 ~ +85℃

    Peak   Power

    50KW

    Storage Temperature

    -55~+125℃

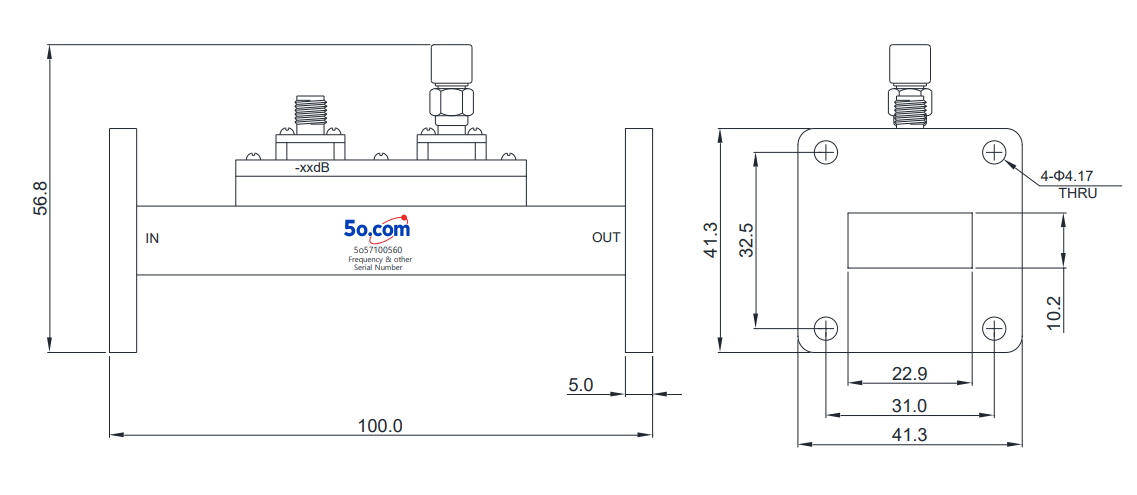

    Overall Dimension(mm)





    Tolerances: ±2% unless otherwise stated.
