    4 Way Power Divider 18.0 ~ 40.0GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    Ripple Max(dB)

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o33523001840KK

    18.0~40.0

    15

    1.9

    1

    1.8(Split   6dB)

    ±8˚

    ±0.6dB

    2.92 Female

    Basic Specifications

    Dimension

    52*30*10mm

    Impedance

    50Ω

    Splitter   Power

    10W

    Operating   Temperature

    -40 ~ +80℃

    Combiner   Power

    1W

    Storage Temperature

    -55~+125℃

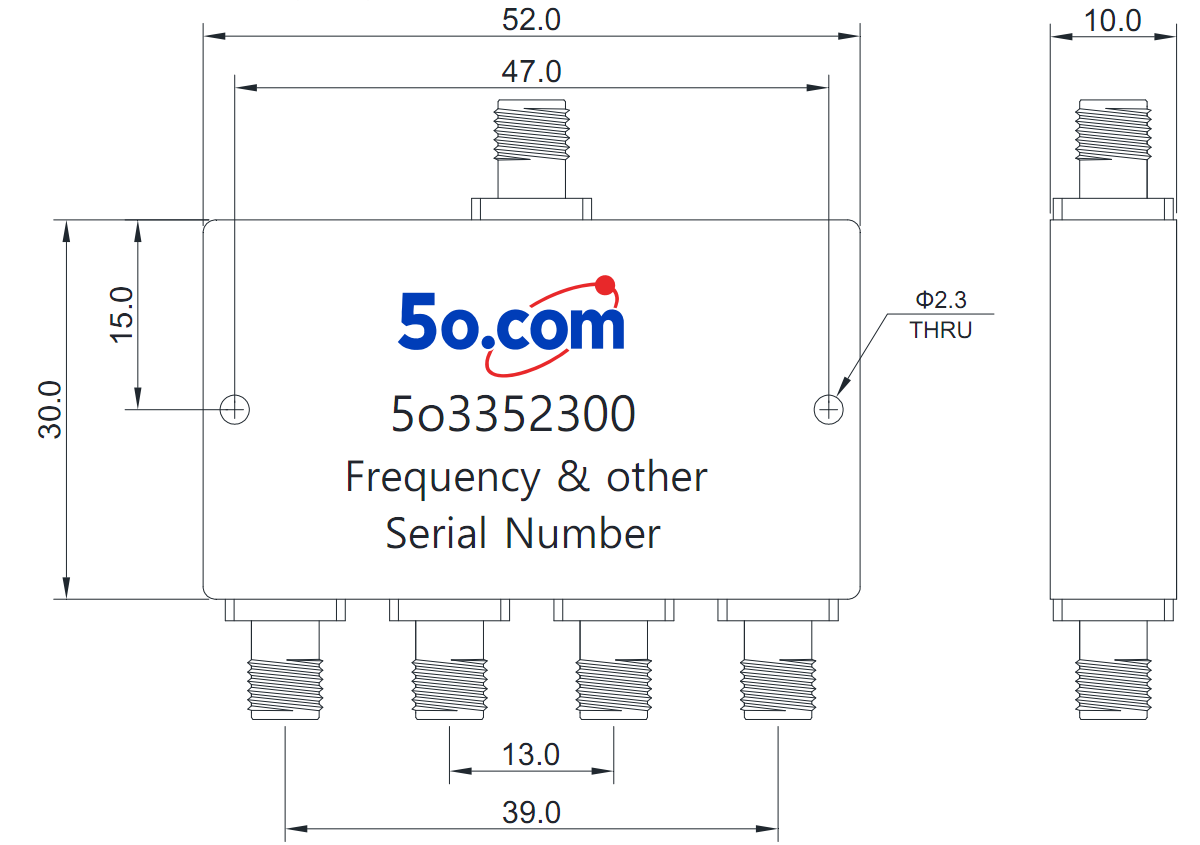

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
