    2 Way Power Divider 5 ~1000MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    VSWR Output Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o312828051000SK

    5 ~ 1000

    20

    1.4

    1.25

    0.8     (Split   3dB)

    ±3˚

    ±0.3dB

    SMA Female

    Basic Specifications

    Dimension

    28*28*10mm

    Impedance

    50Ω

    Splitter   Power

    1W

    Operating   Temperature

    -35 ~ +75℃

    Combiner   Power

    0.5W

    Storage Temperature

    -55~+125℃

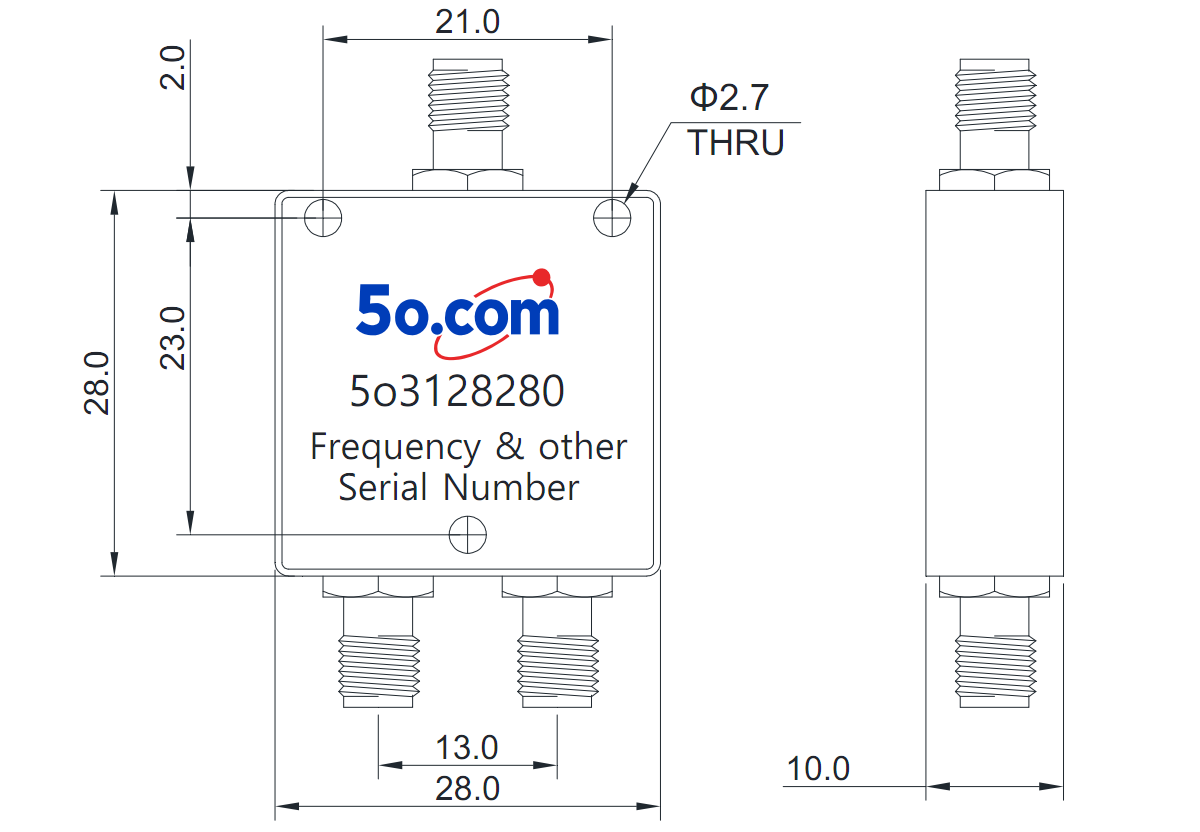

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)
