    2 TX 2 RX Transmission & Receiver System 350 ~ 520MHz

     Application

    ▶Wireless communication base stations and antenna feed systems.

    ▶Remote control and Internet of Things devices.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty


    RF Characteristics

    Part   Number

    Frequency   Range

     (MHz)

    Isolation
      Min(dB)

    VSWR
      Max


    TX

    RX

    5o2T2R453501580

    40314185NK

    CH1

    403.1250

    417.2375

    28.0dB Min. @TX-TX & RX-RX

    75.0dB Min. @TX-RX & RX-TX

    1.25:1 Max.

    CH2

    404.6000

    418.5000

    28.0dB Min. @TX-TX & RX-RX

    75.0dB Min. @TX-RX & RX-TX

    1.25:1 Max.

    5o2T2R453501580

    44314485NK

    CH1

    443.1250

    448.1250

    28.0dB Min. @TX-TX & RX-RX

    75.0dB Min. @TX-RX & RX-TX

    1.25:1 Max.

    CH2

    443.4875

    448.4875

    28.0dB Min. @TX-TX & RX-RX

    75.0dB Min. @TX-RX & RX-TX

    1.25:1 Max.

    5o2T2R453501580

    45754676NK

    CH1

    457.5250

    467.5250

    28.0dB Min. @TX-TX & RX-RX

    75.0dB Min. @TX-RX & RX-TX

    1.25:1 Max.

    CH2

    457.5750

    467.5750

    28.0dB Min. @TX-TX & RX-RX

    75.0dB Min. @TX-RX & RX-TX

    1.25:1 Max.

    Basic Specifications

    Insertion Loss

    4.8dB Max. @TX-ANT & ANT-RX

    Number of   Channels

    N Female @2xTX  N Female @2xRX  N Female @1xANT

    Input Power

    50W/CH

    Receiver Multicoupler Amp

    No

    Weight

    ~5.5 Kg

    Dimension

    350*158*88mm

    Appearance color

    Black

    Operating Temp

    -30~+75℃

    Storage temperature

    -55~+125℃

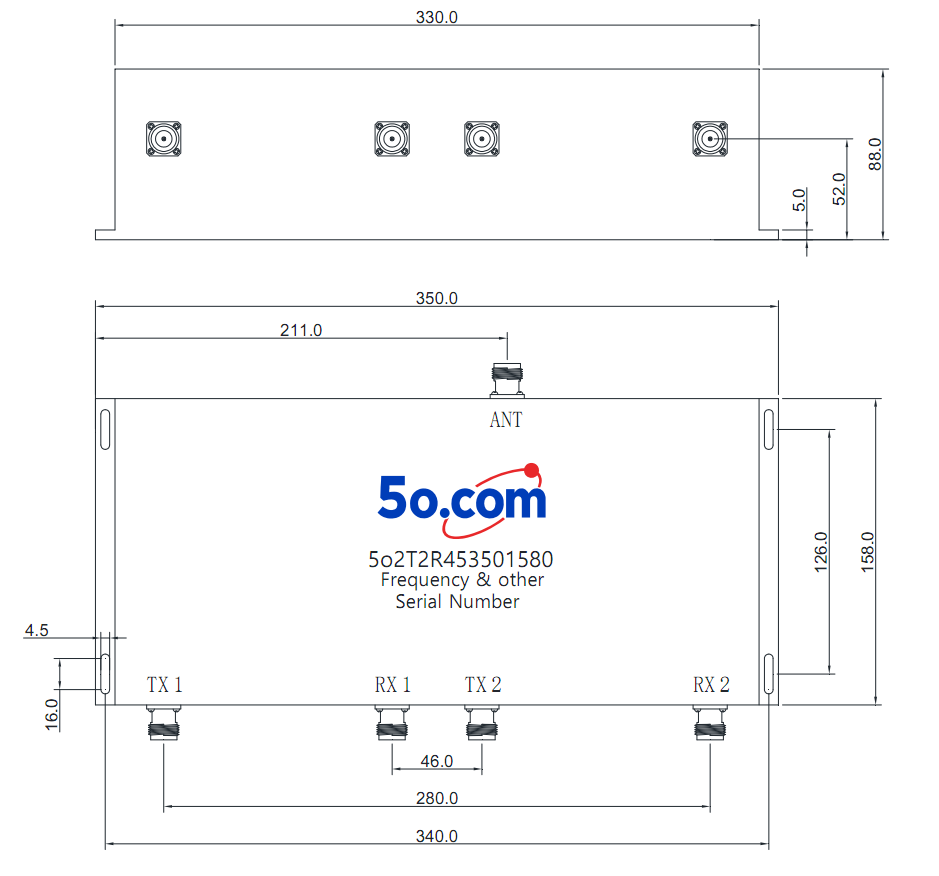

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Tolerances: ±2% unless otherwise stated.
