Band Stop Filter 616 to 638MHz 5o2935250

Band Stop Filter 616 ~ 638MHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Band Reject

Frequency

(MHz)

Pass Band Frequency

Band Reject

Rejection

Min(dB)

VSWR

Max

Insertion Loss

Max(dB)

Connector

Type

5o2935250616638NK

616 ~ 638

50-576MHz

678-800MHz

40

1.8

2.5

N Female

5o2935250616638SK

616 ~ 638

50-576MHz

678-800MHz

40

1.8

2.5

SMA Female

Basic Specifications

Dimension	352520mm	Impedance	50Ω
Power	5W	Operating Temperature	-55~+85℃
Appearance color	Black	Storage Temperature	-55~+125℃

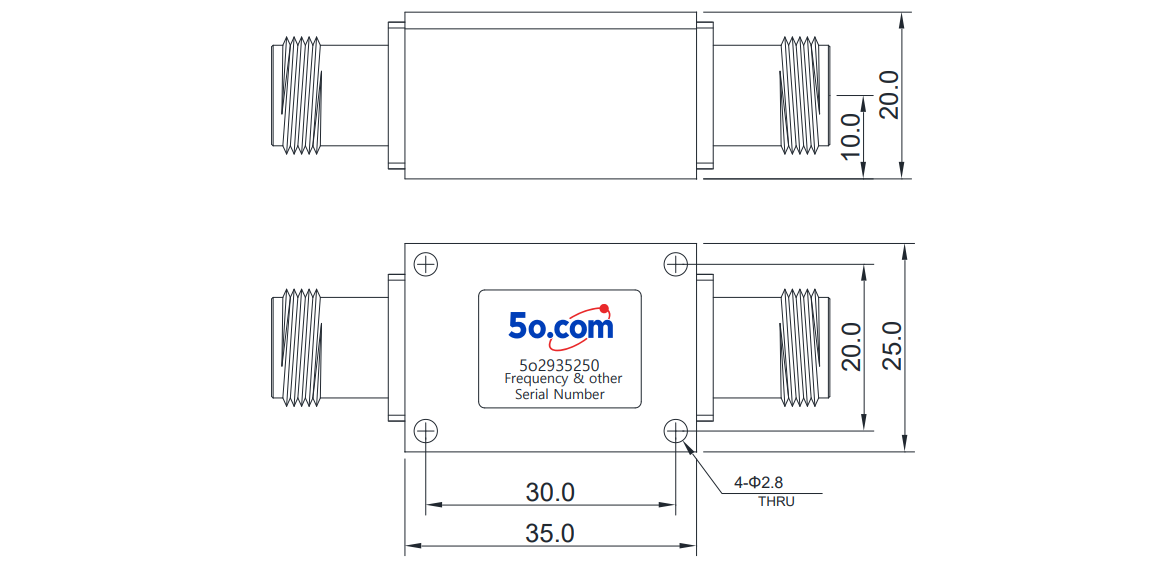

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
