     Low Pass Filter DC ~ 170MHz & 850 ~ 865MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o2790800170NK

    DC-170

    0.5

    1.3

    45dB @500~2000MHz

    N Female

    5o2790800170SK

    DC-170

    0.5

    1.3

    45dB @500~2000MHz

    SMA Female

    5o2790800850865SK

    850 ~ 865

    0.5

    1.3

    45dB @1710~2560MHz

    30dB @2560~4500MHz

    SMA Female

    5o2790800A850865NK

    850 ~ 865

    0.5

    1.3

    45dB @1710~2560MHz

    30dB @2560~4500MHz

    N Female

    Basic Specifications

    Dimension

    90*80*22mm

    Impedance

    50Ω

    Power

    100W

    Operating   Temperature

    -40 ~ +85℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

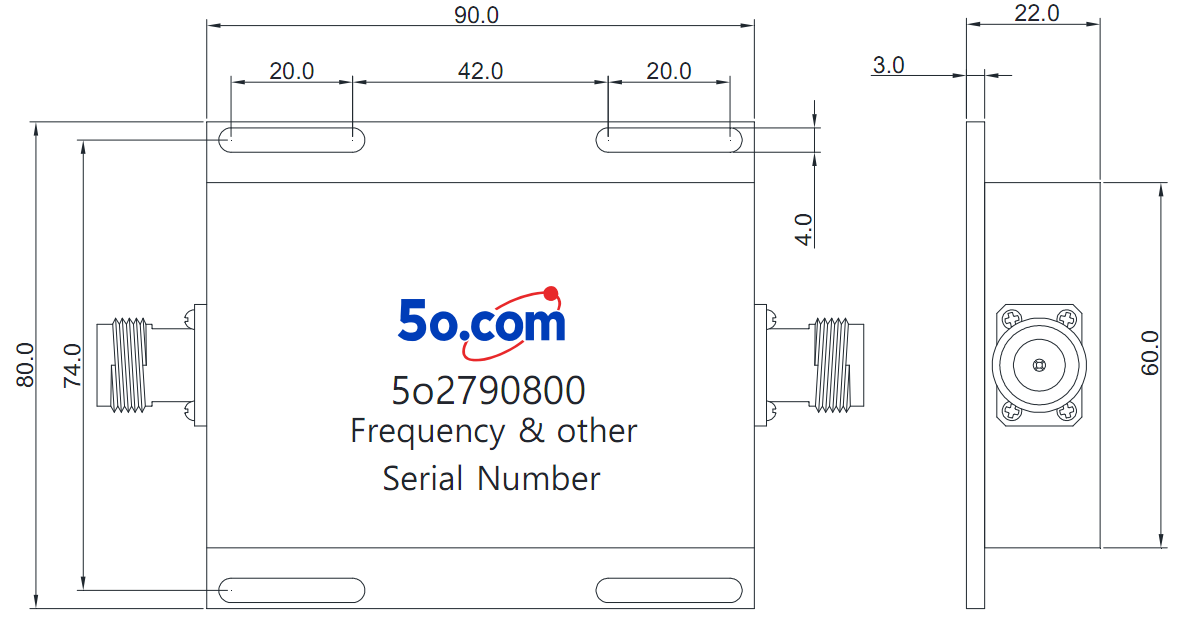

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
