     Band Pass Filter 1350 ~ 1550MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o268366013501550NK

    1350 ~ 1550

    1.5

    1.45

    40dB @800MHz                                  40dB   @1800MHz

    N Female

    5o268366013501550SK

    1350 ~ 1550

    1.5

    1.45

    40dB @800MHz                                 40dB   @1800MHz

    SMA Female

    Basic Specifications

    Dimension

    83*66*14mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

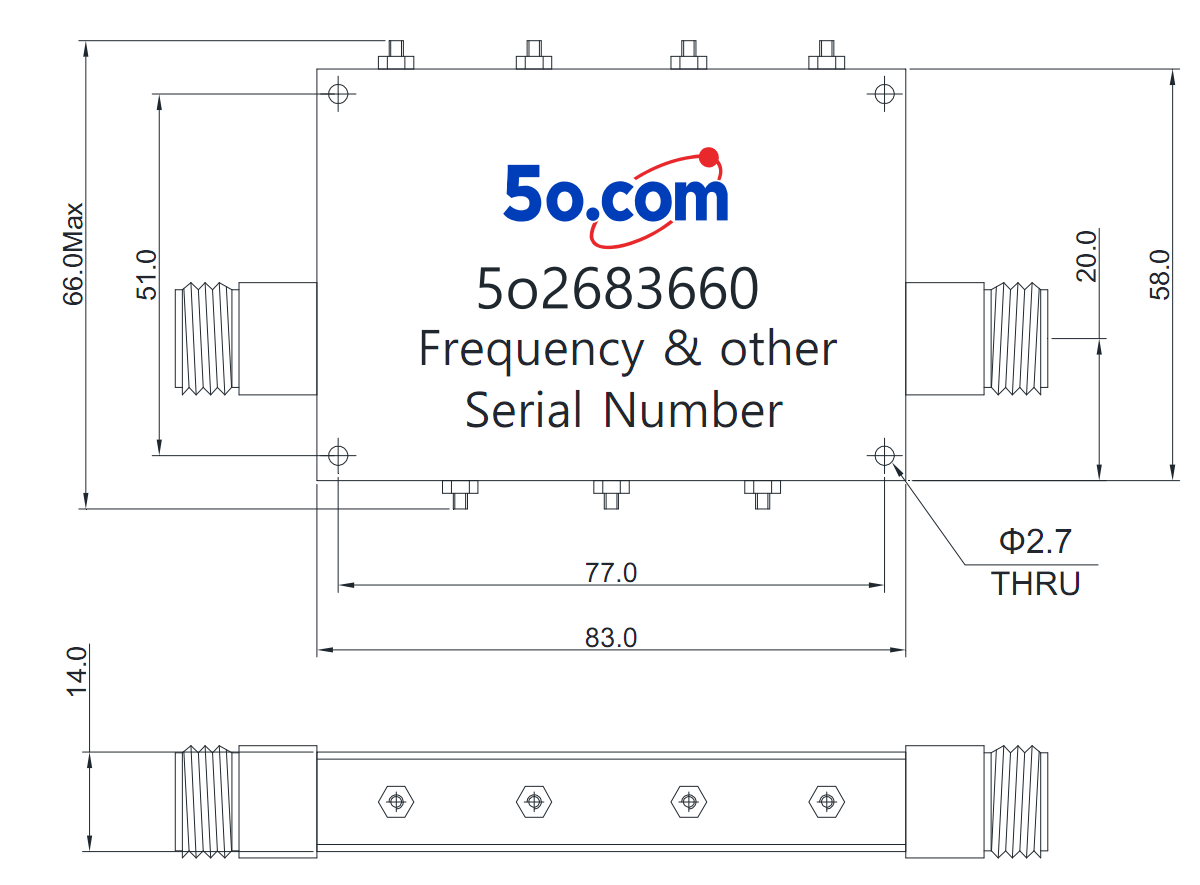

    Overall Dimension(mm)


                                                                                                                                          Tolerances: ±2% unless otherwise stated.
