Part Number

Pass Band (MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR
  Max

Rejection

Connector

Type

5o2648250153162NK

153 ~ 162

6.0

1.5

1.5

40dB @DC~146.5MHz                                      40dB   @168.5~1000MHz

N Female

5o2648250470488NK

470 ~ 488

7.5

1.5

1.5

40dB @DC~454MHz                                 40dB   @504~1000MHz

N Female

5o2648250470530BK

470 ~ 530

3.5

1.5

1.5

20dB @430-445MHz & 555-570MHz          40dB @DC-430MHz & 570-1000MHz

BNC Female

5o2648250470560BK

470 ~ 560

3.5

1.5

1.5

20dB @435-445MHz & 585-595MHz                40dB @DC-435MHz &   595-1000MHz

BNC Female

5o2648250500550BK

500 ~ 550

3.5

1.5

1.5

40dB @DC-475MHz                                            40dB @575-1000MHz

BNC Female

5o2648250500550SK

500 ~ 550

3.5

1.5

1.5

40dB @DC-475MHz                                            40dB @575-1000MHz

SMA Female

5o2648250500550NK

500 ~ 550

3.5

1.5

1.5

40dB @DC-475MHz                                            40dB @575-1000MHz

N Female

5o2648250520694BK

520 ~ 694

1.5

1.5

1.5

30dB @307-367MHz & 847-907MHz             50dB @DC-307MHz &   907-1500MHz

BNC Female

5o2648250530590BK

530 ~ 590

3.5

1.5

1.5

20dB @490-505MHz & 615-630MHz             40dB @DC-490MHz &   630-1000MHz

BNC Female

5o2648250550600BK

550 ~ 600

3.5

1.5

1.5

40dB @DC-525MHz                                         40dB   @625-1000MHz

BNC Female

5o2648250550600SK

550 ~ 600

3.5

1.5

1.5

40dB @DC-525MHz                                         40dB   @625-1000MHz

SMA Female

5o2648250560608BK

560 ~ 608

4.0

1.5

1.5

40dB @DC-535MHz                                        40dB   @633-1000MHz

BNC Female

5o2648250560608SK

560 ~ 608

4.0

1.5

1.5

40dB @DC-535MHz                                         40dB   @633-1000MHz

SMA Female

5o2648250600650BK

600 ~ 650

3.5

1.5

1.5

30dB @DC-570MHz                                      30dB   @685-1000MHz

BNC Female

5o2648250650700BK

650 ~ 700

4.0

1.5

1.5

40dB @DC-620MHz                                         40dB   @730-1000MHz

BNC Female

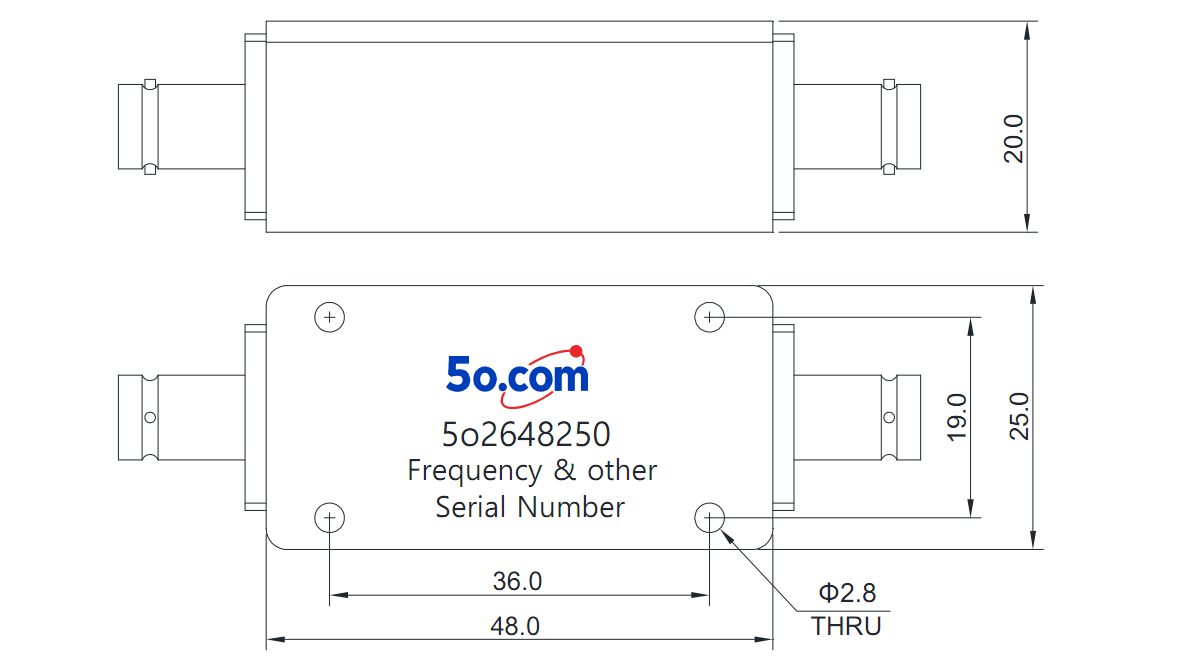

Dimension

48*25*20mm

Impedance

50Ω

Power

2W

Operating   Temperature

-30 ~ +70℃

Appearance   Color

Black

Storage   Temperature

-55~+125℃
