    Band Pass Filter 240 ~ 380MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple in-band Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o261941260240380SK

    240 ~ 380

    2.0

    1.5

    1.38

    80dB@170~200MHz
      80dB@420~500MHz
      50dB@200~220MHz
      50dB@400~420MHz
      45dB @DC~170MHz

    SMA Female

    5o261941260240380NK

    240 ~ 380

    2.0

    1.5

    1.38

    80dB@170~200MHz
      80dB@420~500MHz
      50dB@200~220MHz
      50dB@400~420MHz
      45dB @DC~170MHz

    N Female

    Basic Specifications

    Dimension

    194*126*25mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

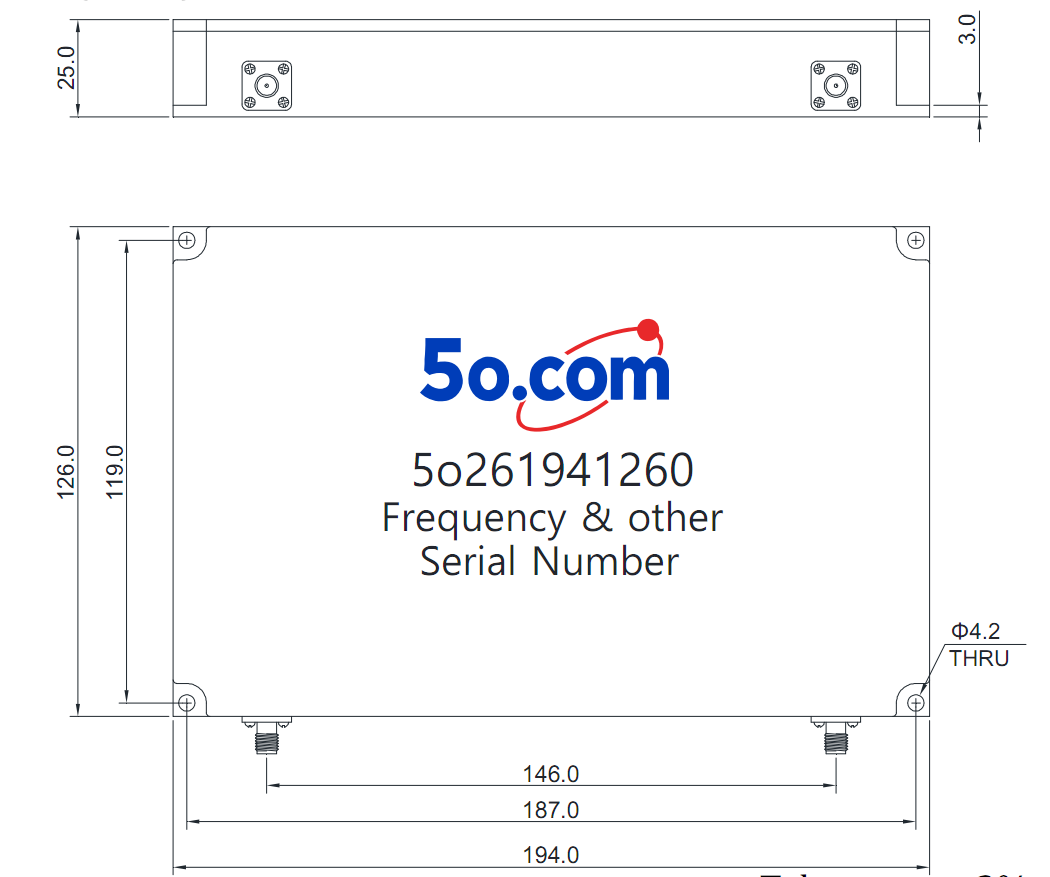

    Overall Dimension(mm)






    Tolerances: ±2% unless otherwise stated.
