    1000W Coaxial Attenuator DC-3GHz

    Application




    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency range

    Power

    Attenuation Value

    Attenuation Tolerance

    VSWR
      Max

    Connector Type

    5o20100003D10

    DC-3GHz

    1000W

    10 dB

    ±2.0 dB

    1.3

    7/16 Male to 7/16 Female

    5o20100003D20

    20 dB

    ±2.0 dB

    1.3

    7/16 Male to 7/16 Female

    5o20100003D30

    30 dB

    ±2.0 dB

    1.3

    7/16 Male to 7/16 Female

    5o20100003D40

    40 dB

    ±2.5 dB

    1.3

    7/16 Male to 7/16 Female

    5o20100003D50

    50 dB

    ±2.5 dB

    1.3

    7/16 Male to 7/16 Female

    5o20100003D60

    60 dB

    ±2.5 dB

    1.3

    7/16 Male to 7/16 Female

    5o20100003DJNK10

    10 dB

    ±2.0 dB

    1.3

    7/16 Male to N Female

    5o20100003DJNK20

    20 dB

    ±2.0 dB

    1.3

    7/16 Male to N Female

    5o20100003DJNK30

    30 dB

    ±2.0 dB

    1.3

    7/16 Male to N Female

    5o20100003DJNK40

    40 dB

    ±2.5 dB

    1.3

    7/16 Male to N Female

    5o20100003DJNK50

    50 dB

    ±2.5 dB

    1.3

    7/16 Male to N Female

    5o20100003DJNK60

    60 dB

    ±2.5 dB

    1.3

    7/16 Male to N Female

    5o20100003DKNK40

    40 dB

    ±2.5 dB

    1.3

    7/16 Male to N Female

    5o20100003DKNJ30

    30 dB

    ±2.0 dB

    1.3

    7/16 Male to N Female

    Basic Specifications

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

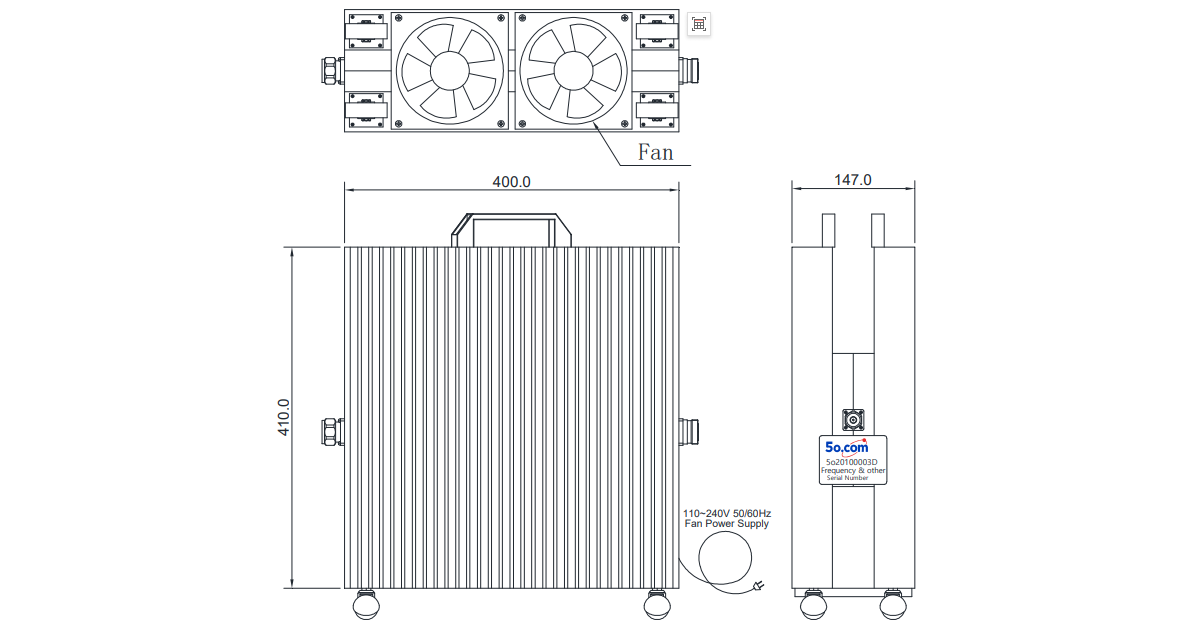

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Power Derating Diagram

     Power Derating Diagram.png

    Notes

    ◆Coaxial attenuator impedance matched to 50Ω.

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆For products with a power of over 50W, pay attention to the direction during use and strictly avoid reverse connection.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
