    Microstrip Circulator 8.0 ~ 18.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o1566089

    8.0 ~ 9.0

    18

    1.25

    0.5

    Microstrip

    5o15660812

    8.0 ~ 12.0

    15

    1.4

    0.6

    Microstrip

    5o15660814

    8.0 ~ 14.0

    12

    1.5

    0.9

    Microstrip

    5o15660910

    9.0 ~ 10.0

    20

    1.25

    0.5

    Microstrip

    5o15660911

    9.0 ~ 11.0

    18

    1.3

    0.5

    Microstrip

    5o15660105115

    10.5 ~ 11.5

    20

    1.25

    0.5

    Microstrip

    5o15660115125

    11.5 ~ 12.5

    20

    1.25

    0.5

    Microstrip

    5o156601213

    12.0 ~ 13.0

    20

    1.25

    0.5

    Microstrip

    5o15660125148

    12.5 ~ 14.8

    20

    1.3

    0.55

    Microstrip

    5o156601314

    13.0 ~ 14.0

    20

    1.25

    0.5

    Microstrip

    5o15660135145

    13.5 ~ 14.5

    20

    1.25

    0.5

    Microstrip

    5o156601416

    14.0 ~ 16.0

    18

    1.3

    0.5

    Microstrip

    5o15660145155

    14.5 ~ 15.5

    20

    1.25

    0.5

    Microstrip

    5o156601518

    15.0 ~ 18.0

    18

    1.35

    0.6

    Microstrip

    5o15660155165

    15.5 ~ 16.5

    20

    1.25

    0.5

    Microstrip

    5o15660165175

    16.5 ~ 17.5

    20

    1.25

    0.5

    Microstrip

    Basic Specifications

    Dimension

    6*6*2.5mm

    Impedance

    50Ω

    Forward Power

    15W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    15W

    Storage Temperature

    -55~+125℃

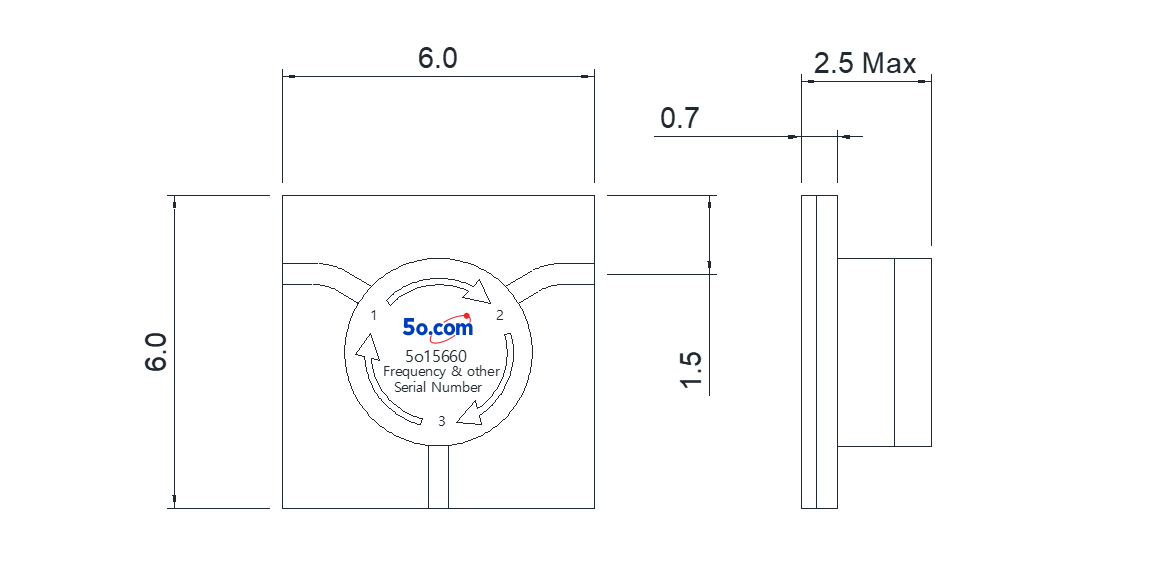

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
