    Microstrip Circulator 14.0 ~ 20.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o155511516

    15 ~ 16

    20

    1.25

    0.5

    Microstrip

    5o155511517

    15 ~ 17

    20

    1.25

    0.5

    Microstrip

    5o155511518

    15 ~ 18

    17

    1.35

    0.6

    Microstrip

    5o155511617

    16 ~ 17

    20

    1.25

    0.5

    Microstrip

    5o155511719

    17 ~ 19

    17

    1.35

    0.6

    Microstrip

    5o15551177197

    17.7 ~ 19.7

    18

    1.3

    0.6

    Microstrip

    5o155511820

    18 ~ 20

    18

    1.3

    0.6

    Microstrip

    5o15551196212

    19.6 ~ 21.2

    18

    1.3

    0.6

    Microstrip

    5o155512123

    21 ~ 23

    18

    1.3

    0.6

    Microstrip

    Basic Specifications

    Dimension

    5*5*3.5mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    10W

    Storage Temperature

    -55~+125℃

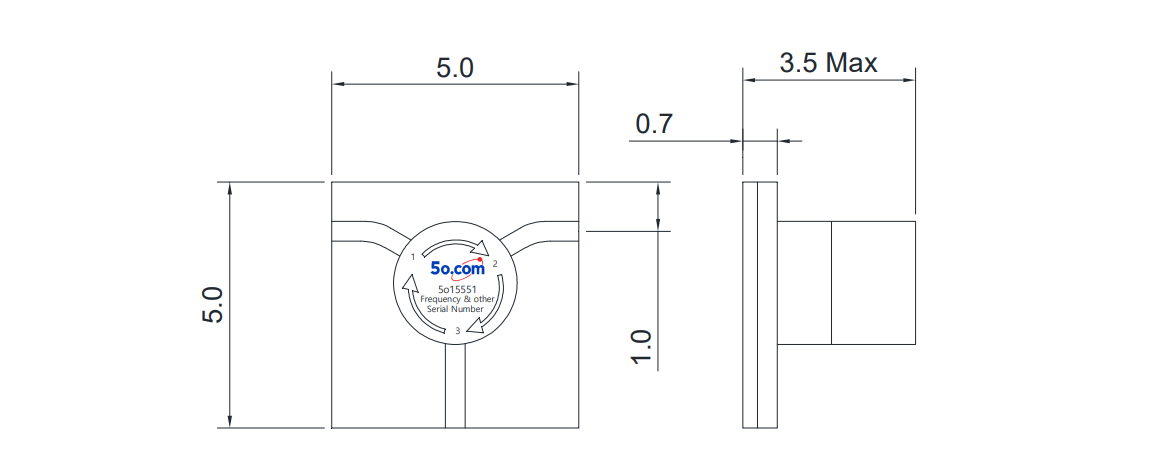

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
