    Microstrip Circulator 31.0 ~ 40.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o1533243139

    31 ~ 39

    13

    1.55

    1.3

    Microstrip

    5o1533243238

    32 ~ 38

    14

    1.4

    1.0

    Microstrip

    5o1533243240

    32 ~ 40

    13

    1.55

    1.3

    Microstrip

    5o1533243337

    33 ~ 37

    14

    1.4

    1.0

    Microstrip

    5o1533243540

    35 ~ 40

    14

    1.4

    1.0

    Microstrip

    Basic Specifications

    Dimension

    3.5*3.5*2.5mm

    Impedance

    50Ω

    Forward Power

    2W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    2W

    Storage Temperature

    -55~+125℃

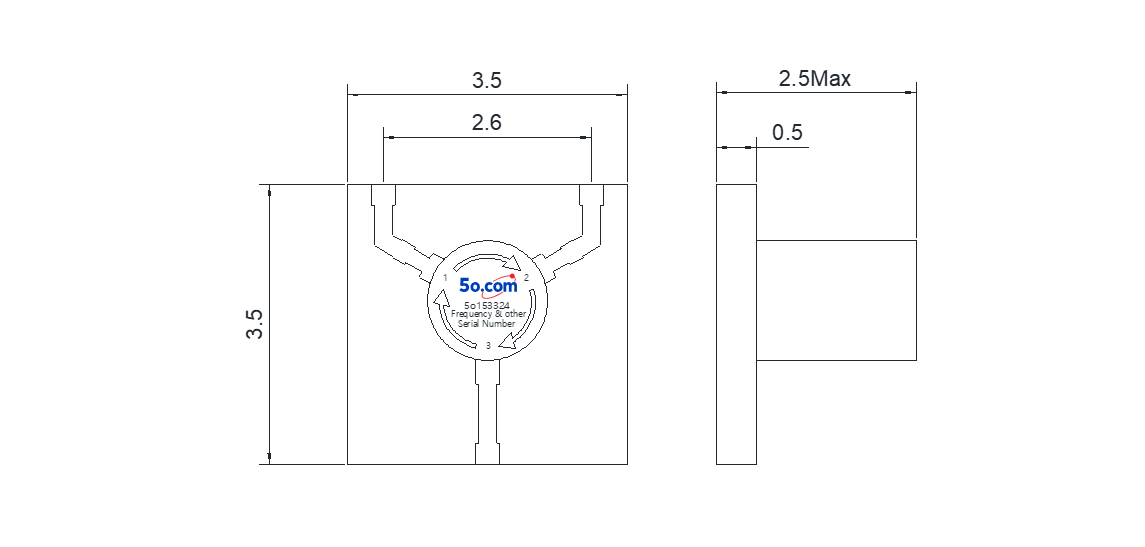

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
