    Microstrip Circulator 2.7 ~ 4.9GHz

     Application

       ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o15141402731

    2.7 ~ 3.1

    20

    1.2

    0.5

    Microstrip

    5o15141402735

    2.7 ~ 3.5

    18

    1.3

    0.6

    Microstrip

    5o1514140334

    3.0 ~ 3.4

    20

    1.2

    0.4

    Microstrip

    5o1514140345

    3.0 ~ 4.5

    16

    1.35

    0.8

    Microstrip

    5o1514140314

    3.1 ~ 4.0

    18

    1.3

    0.6

    Microstrip

    5o15141403242

    3.2 ~ 4.2

    16

    1.35

    0.7

    Microstrip

    5o15141403236

    3.2 ~ 3.6

    20

    1.2

    0.4

    Microstrip

    5o15141403349

    3.3 ~ 4.9

    15

    1.45

    0.8

    Microstrip

    5o15141403437

    3.4 ~ 3.7

    20

    1.2

    0.4

    Microstrip

    5o1514140374

    3.7 ~ 4.0

    20

    1.2

    0.4

    Microstrip

    Basic Specifications

    Dimension

    14*14*5.5mm

    Impedance

    50Ω

    Forward Power

    15W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    15W

    Storage Temperature

    -55~+125℃

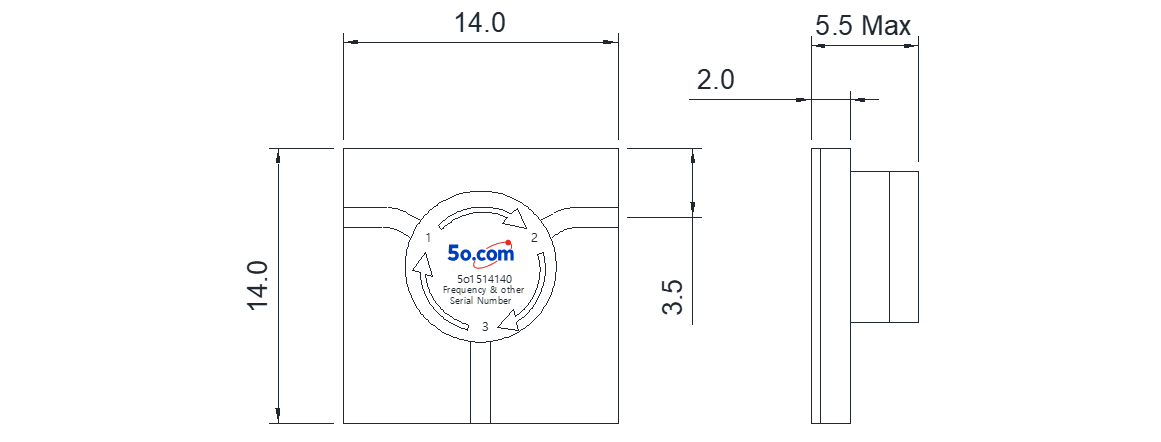

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)




    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
