    Microstrip Circulator 4.0 ~ 5.85GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o1512120445

    4.0 ~ 4.5

    20

    1.2

    0.4

    Microstrip

    5o15121204254

    4.2 ~ 5.4

    18

    1.3

    0.6

    Microstrip

    5o15121204255

    4.2 ~ 5.5

    18

    1.3

    0.6

    Microstrip

    5o15121204447

    4.4 ~ 4.7

    20

    1.2

    0.4

    Microstrip

    5o151212044585

    4.4 ~ 5.85

    18

    1.3

    0.6

    Microstrip

    5o1512120455

    4.5 ~ 5.0

    20

    1.2

    0.4

    Microstrip

    5o15121204852

    4.8 ~ 5.2

    20

    1.2

    0.4

    Microstrip

    5o1512120556

    5.0 ~ 5.6

    20

    1.25

    0.4

    Microstrip

    5o15121205258

    5.2 ~ 5.8

    20

    1.25

    0.4

    Microstrip

    Basic Specifications

    Dimension

    12*12*4mm

    Impedance

    50Ω

    Forward Power

    15W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    15W

    Storage Temperature

    -55~+125℃

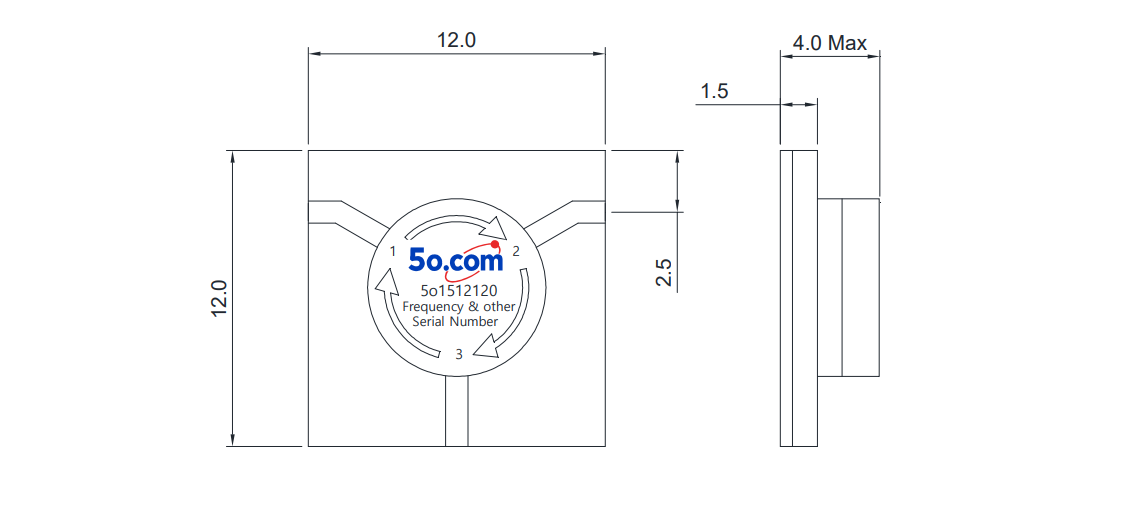

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
