Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o14360220240

220 ~ 240

18

1.3

0.65

SMT

-20 ~ +65

5o14360240260

240 ~ 260

18

1.3

0.5

SMT

-20 ~ +65

5o14360260280

260 ~ 280

20

1.25

0.5

SMT

-20 ~ +65

5o14360309339

309 ~ 339

20

1.25

0.4

SMT

-20 ~ +65

5o14360350370

350 ~ 370

21

1.2

0.35

SMT

-20 ~ +65

5o14360380460

380 ~ 460

18

1.3

0.5

SMT

-20 ~ +65

5o14360390410

390 ~ 410

23

1.2

0.3

SMT

-30 ~ +70

5o14360400470

400 ~ 470

20

1.25

0.4

SMT

-30 ~ +70

5o14360413419

413 ~ 419

30

1.15

0.3

SMT

-30 ~ +70

5o14360419425

419 ~ 425

30

1.15

0.3

SMT

-30 ~ +70

5o14360440470

440 ~ 470

23

1.2

0.3

SMT

-30 ~ +70

5o14360450520

450 ~ 520

20

1.25

0.4

SMT

-20 ~ +65

5o14360600800

600 ~ 800

19

1.25

0.5

SMT

-20 ~ +65

5o14360700900

700 ~ 900

20

1.25

0.4

SMT

-30 ~ +70

5o143607001000

700 ~ 1000

16

1.4

0.6

SMT

-20 ~ +65

5o14360770860

770 ~ 860

23

1.2

0.3

SMT

-30 ~ +70

5o14360860872

860 ~ 872

30

1.15

0.25

SMT

-20 ~ +65

5o14360900930

900 ~ 930

30

1.15

0.2

SMT

-40 ~ +85

5o1436010001300

1000 ~ 1300

20

1.25

0.4

SMT

-30 ~ +70

5o1436011001700

1100 ~ 1700

15

1.45

0.5

SMT

-30 ~ +70

5o1436012961298

1296 ~ 1298

30

1.15

0.2

SMT

-30 ~ +70

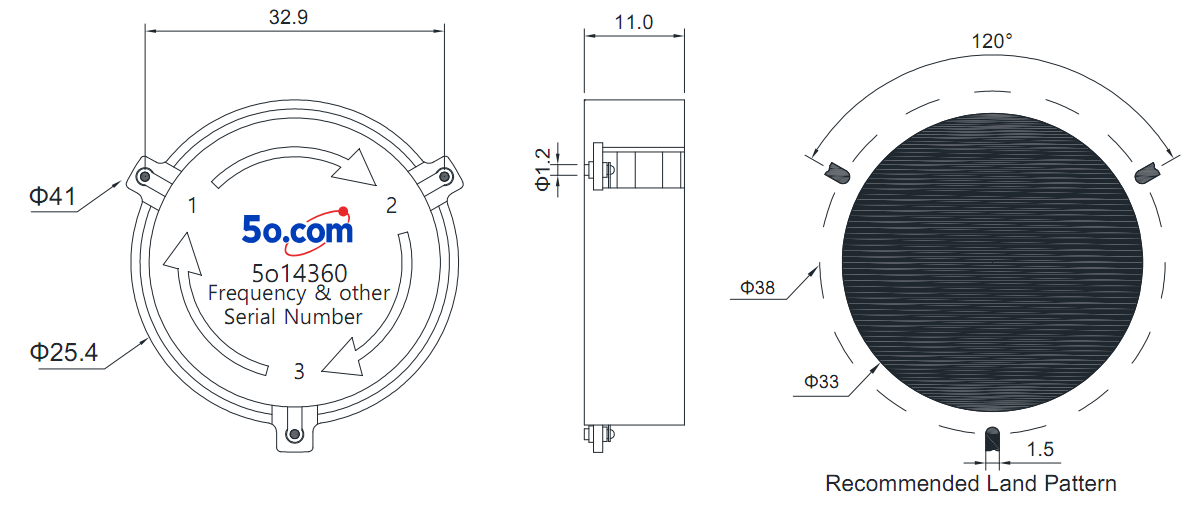

Dimension

Φ36*11mm

Impedance

50Ω

Forward Power

200W

Operating   Temperature

-40 ~ +85℃

Reverse   Power

200W

Storage Temperature

-55~+125℃
