    4 Port Dual Junction Coaxial Circulator 250 ~ 1300MHz



    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation

    (2-1   & 4-3)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2   & 3-4)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o13964804300350NK

    300 ~ 350

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o13964804350400NK

    350 ~ 400

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o13964804350500NK

    350 ~ 500

    32

    1.4

    1.2

    N Female

    -30 ~ +70

    5o13964804380470NK

    380 ~ 470

    40

    1.25

    0.7

    N Female

    -30 ~ +70

    5o13964804400470NK

    400 ~ 470

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o13964804400430NK

    400 ~ 430

    50

    1.15

    0.5

    N Female

    -30 ~ +70

    5o13964804440470NK

    440 ~ 470

    50

    1.15

    0.5

    N Female

    -30 ~ +70

    5o13964804440470NK

    440 ~ 470

    50

    1.15

    0.5

    N Female

    -30 ~ +70

    5o13964804470570NK

    470 ~ 570

    40

    1.25

    0.8

    N Female

    -30 ~ +70

    5o13964804480520NK

    480 ~ 520

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o13964804570670NK

    570 ~ 670

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o13964804670770NK

    670 ~ 770

    45

    1.2

    0.6

    N Female

    -30 ~ +70

    5o139648047001000NK

    700 ~ 1000

    36

    1.3

    1.2

    N Female

    -30 ~ +70

    5o1396480412001300NK

    1200 ~ 1300

    45

    1.2

    0.5

    N Female

    -30 ~ +70

    Basic Specifications

    Dimension

    96*48*24mm

    Impedance

    50Ω

    Forward Power

    400W

    Connector   Type

    N(Female)

    Reverse   Power

    400W

    Storage Temperature

    -55~+125℃

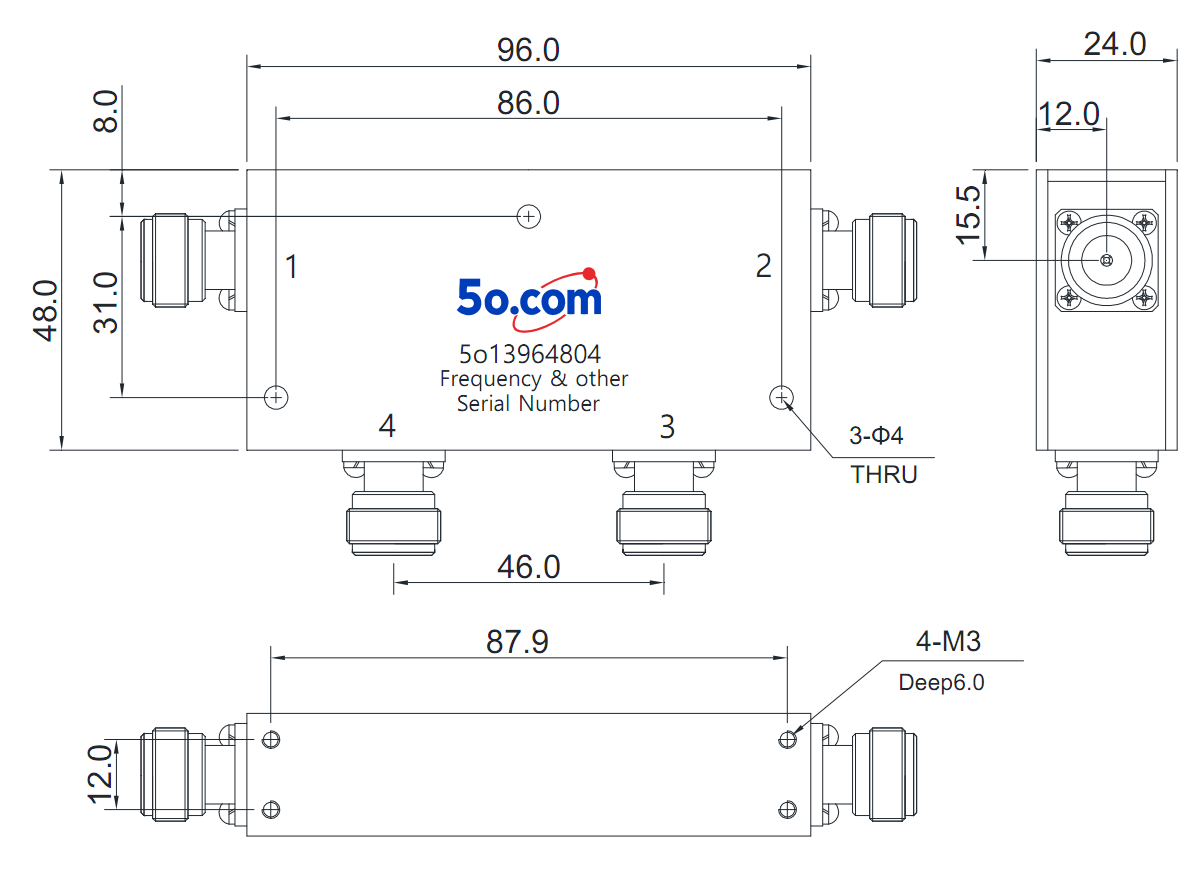

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type ( N Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
