Part   Number

Frequency   Range (MHz)

Isolation

(2-1   & 4-3)
  Min(dB)

VSWR
  Max

Insertion   Loss

(1-2   & 3-4)
  Max(dB)

Connector

Type

Temp.(°C)

5o13643204800900NK

800 ~ 900

40

1.25

0.8

N Female

-30 ~ +70

5o13643204925960SK

925 ~ 960

45

1.2

0.6

SMA Female

-30 ~ +70

5o136432049601215NK

960 ~ 1215

40

1.25

0.8

N Female

-30 ~ +70

5o1364320413501500SK

1350 ~ 1500

40

1.25

0.6

SMA Female

-40 ~ +85

5o1364320414501700SK

1450 ~ 1700

40

1.25

0.8

SMA Female

-20 ~ +65

5o1364320416001700SK

1600 ~ 1700

50

1.15

0.5

SMA Female

-30 ~ +70

5o1364320416002000NK

1600 ~ 2000

36

1.3

1.0

N Female

-20 ~ +65

5o1364320417002200SK

1700 ~ 2200

36

1.3

1.0

SMA Female

-30 ~ +70

5o1364320417101785SK

1710 ~ 1785

50

1.15

0.6

SMA Female

-30 ~ +70

5o1364320418002400SK

1800 ~ 2400

36

1.3

1.0

SMA Female

-40 ~ +70

5o1364320420002500SK

2000 ~ 2500

40

1.25

0.8

SMA Female

-40 ~ +70

5o1364320420002700SK

2000 ~ 2700

36

1.3

1.0

SMA Female

-40 ~ +70

5o1364320421102170SK

2110 ~ 2170

50

1.15

0.6

SMA Female

-40 ~ +85

5o1364320423002500SK

2300 ~ 2500

45

1.2

0.6

SMA Female

-40 ~ +85

5o1364320424002600SK

2400 ~ 2600

45

1.2

0.6

SMA Female

-40 ~ +85

5o1364320425002700SK

2500 ~ 2700

45

1.2

0.6

SMA Female

-40 ~ +85

5o1364320425002700NK

2500 ~ 2700

45

1.2

0.6

N Female

-40 ~ +85

5o1364320429003100SK

2900 ~ 3100

40

1.3

0.7

SMA Female

-40 ~ +85

5o1364320431003500SK

3100 ~ 3500

40

1.3

0.7

SMA Female

-40 ~ +85

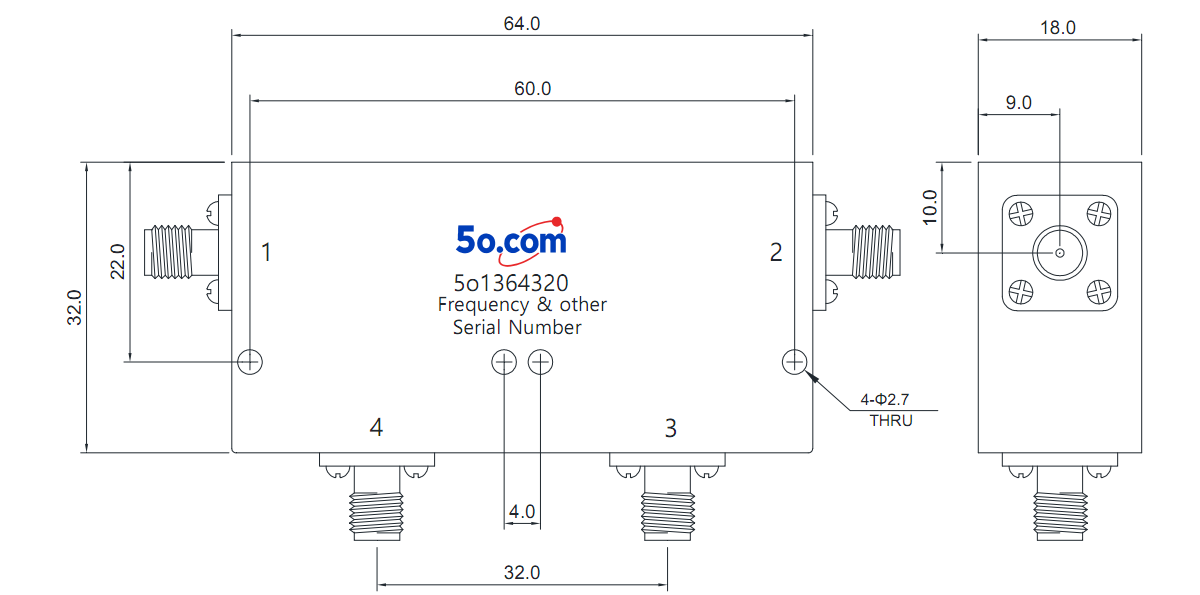

Dimension

64*32*18mm

Impedance

50Ω

Forward Power

200W

Connector   Type

N, SMA(Female)

Reverse   Power

200W

Storage Temperature

-55~+125℃
