    Dual Junction Coaxial Circulator 3.5 to 7.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (GHz)

    Isolation

    (2-1)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o13392804247SK

    4.2 ~ 4.7

    40

    1.25

    0.7

    SMA Female

    -40 ~ +85

    5o1339280445SK

    4.4 ~ 5.0

    40

    1.25

    0.8

    SMA Female

    -40 ~ +85

    5o13392804951SK

    4.9 ~ 5.1

    45

    1.2

    0.7

    SMA Female

    -40 ~ +85

    5o1339280555SK

    5.0 ~ 5.5

    40

    1.25

    0.8

    SMA Female

    -40 ~ +85

    5o13392805459SK

    5.4 ~ 5.9

    45

    1.2

    0.8

    SMA Female

    -40 ~ +85

    5o1339280566SK

    5.6 ~ 6.0

    45

    1.2

    0.6

    SMA Female

    -40 ~ +85

    5o13392805765SK

    5.7 ~ 6.5

    40

    1.25

    1

    SMA Female

    -40 ~ +85

    5o133928067SK

    6.0 ~ 7.0

    40

    1.25

    0.8

    SMA Female

    -40 ~ +85

    Basic Specifications

    Dimension

    39*28*15mm

    Impedance

    50Ω

    Forward Power

    60W

    Connector   Type

    SMA(Female/Male)

    Reverse   Power

    60W

    Storage Temperature

    -55~+125℃

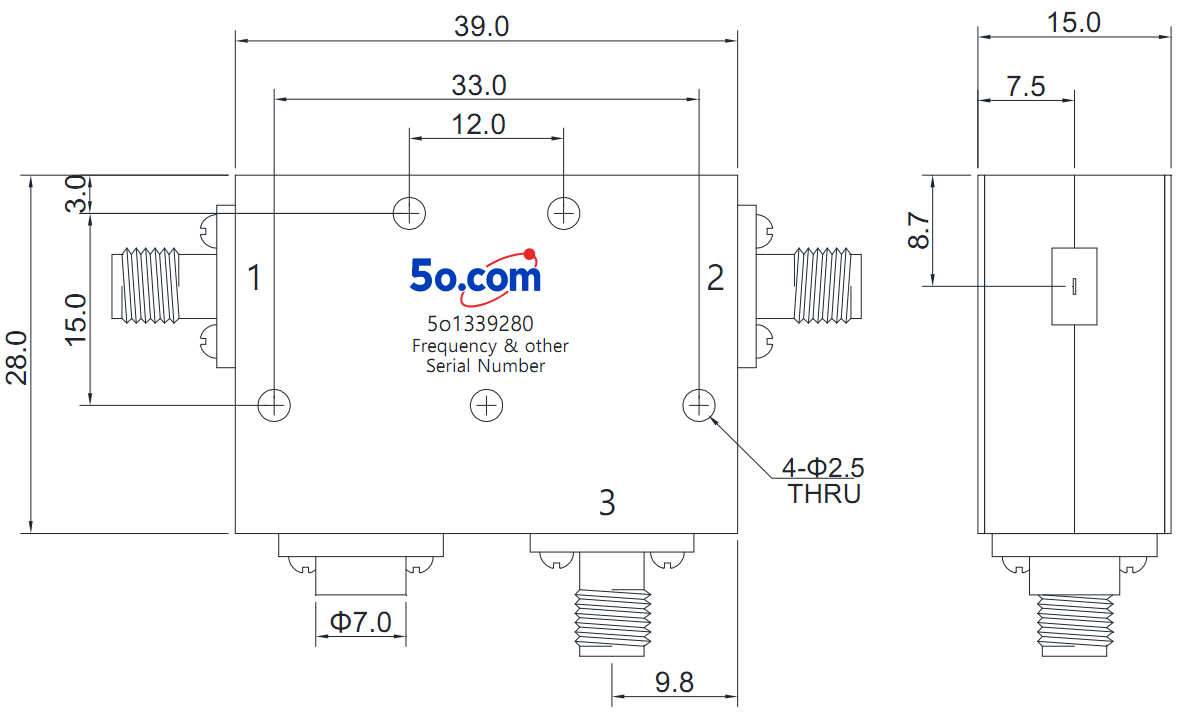

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
