    4 Port Dual Junction Coaxial Circulator 8.0 ~ 12.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

     RF Characteristics

    Part   Number

    Frequency   Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion   Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    2-1

    4-3

    1-4

    3-2

    1-2

    3-4

    2-3

    4-1

    5o13261814812SK

    8.0 ~ 12.0

    36

    18

    1.3

    1.0

    0.5

    SMA Female

    -55 ~ +85

    5o13261814812SJSKSKSK

    8.0 ~ 12.0

    36

    18

    1.3

    1.0

    0.5

    SMA Male @Port 1
      SMA Female @Other

    -55 ~ +85

    5o13261814812SKSJSKSK

    8.0 ~ 12.0

    36

    18

    1.3

    1.0

    0.5

    SMA Male @Port 1
      SMA Female @Other

    -55 ~ +85

    Basic Specifications

    Dimension

    26*18*13.8mm

    Impedance

    50Ω

    Forward Power

    60W

    Connector   Type

    SMA(Female/Male)

    Reverse   Power

    60W

    Storage Temperature

    -55~+125℃

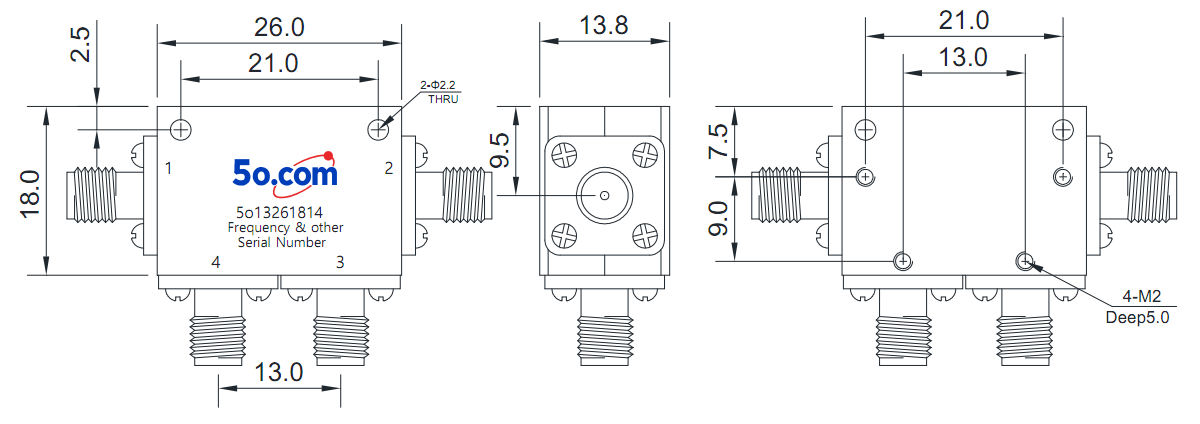

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
