Part   Number

Frequency   Range (MHz)

Isolation

(2-1   & 4-3)
  Min(dB)

VSWR
  Max

Insertion   Loss

(1-2   & 3-4)
  Max(dB)

Connector

Type

Temp.(°C)

5o1312060044550SK

45 ~ 50

36

1.3

3.0

SMA Female

-10 ~ +65

5o1312060044555SK

45 ~ 55

36

1.3

3.6

SMA Female

-10 ~ +65

5o1312060045075SK

50 ~ 75

40

1.25

3.6

SMA Female

-10 ~ +65

5o1312060045575SK

55 ~ 75

40

1.25

2.5

SMA Female

-10 ~ +65

5o1312060046065NK

60 ~ 65

40

1.25

2.0

N Female

-10 ~ +65

5o1312060046570NK

65 ~ 70

40

1.25

2.0.

N Female

-10 ~ +65

5o1312060046888SK

68 ~ 88

36

1.3

2.5

SMA Female

-20 ~ +65

5o1312060047085SK

70 ~ 85

40

1.25

1.6

SMA Female

-20 ~ +65

5o1312060047090NK

70 ~ 90

40

1.25

2.0

N Female

-20 ~ +65

5o13120600480120SK

80 ~ 120

36

1.3

2.0

SMA Female

0 ~ +65

5o13120600485135NK

85 ~ 135

36

1.3

2.4

N Female

-10 ~ +65

5o13120600487108NK

87 ~ 108

40

1.25

1.2

N Female

-20 ~ +65

5o13120600487108NKP200

87 ~ 108

40

1.25

1.2

N Female

-20 ~ +65

5o13120600488138NK

88 ~ 138

36

1.3

2.0

N Female

-10 ~ +65

5o131206004100130NK

100 ~ 130

40

1.25

1.2

N Female

-30 ~ +70

5o131206004100150SK

100 ~ 150

40

1.25

2.0

SMA Female

-10 ~ +65

5o131206004108118NK

108 ~ 118

45

1.2

1.0

N Female

-30 ~ +70

5o131206004108118NKP200

108 ~ 118

45

1.2

1.0

N Female

-30 ~ +70

5o131206004112156NK

112 ~ 156

40

1.25

1.6

N Female

-30 ~ +70

5o131206004118137NK

118 ~ 137

45

1.2

1.0

N Female

-30 ~ +70

5o131206004118137NKP200

118 ~ 137

45

1.2

1.0

N Female

-30 ~ +70

5o131206004130180SK

130 ~ 180

40

1.25

1.2

SMA Female

-30 ~ +70

5o131206004136174SK

136 ~ 174

44

1.2

1.0

SMA Female

-30 ~ +70

5o131206004136174NKP200

136 ~ 174

44

1.2

1.0

N Female

-30 ~ +70

5o131206004148174NKP150

148 ~ 174

50

1.15

1.0

N Female

-30 ~ +70

5o131206004150200NK

150 ~ 200

40

1.25

1.2

N Female

-30 ~ +70

5o131206004150225SK

150 ~ 225

36

1.3

1.8

SMA Female

-30 ~ +70

5o131206004170200NK

170 ~ 200

40

1.25

1.0

N Female

-30 ~ +70

5o131206004170200NKP200

170 ~ 200

40

1.25

1.0

N Female

-30 ~ +70

5o131206004180220SJSKSKSK

180 ~ 220

40

1.25

1.0

SMA Male @Port 1
  SMA Female @Other

-30 ~ +70

5o131206004200270NK

200 ~ 270

40

1.25

1.4

N Female

-30 ~ +70

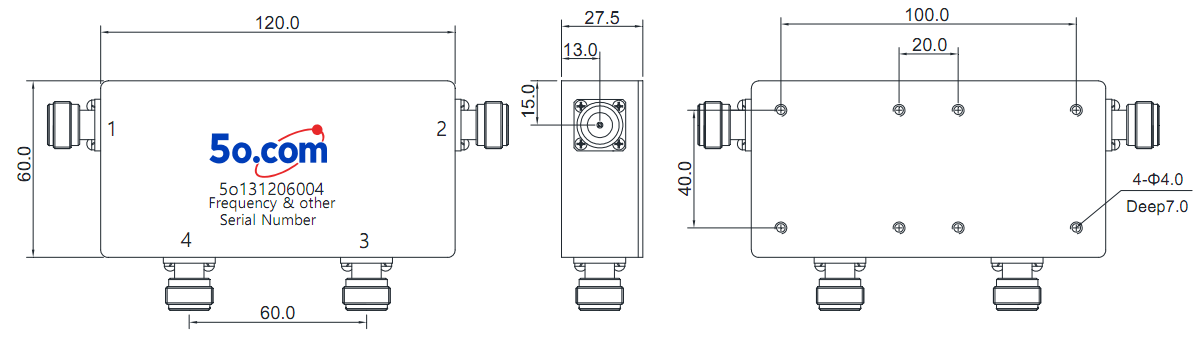

Dimension

120*60*28mm

Impedance

50Ω

Forward Power

200W

Connector   Type

N, SMA(Female/Male)

Reverse   Power

200W

Storage Temperature

-55~+125℃
