    Dual Junction Coaxial Circulator 45 ~ 270MHz

    Application

    ▶RF power amplifier protection.            ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.         ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation

    (2-1)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o131206004550SK

    45 ~ 50

    36

    1.3

    3.0

    SMA Female

    -10 ~ +65

    5o131206004555SK

    45 ~ 55

    36

    1.3

    3.6

    SMA Female

    -10 ~ +65

    5o131206005075SK

    50 ~ 75

    40

    1.25

    3.6

    SMA Female

    -10 ~ +65

    5o131206005575SK

    55 ~ 75

    40

    1.25

    2.5

    SMA Female

    -10 ~ +65

    5o131206006065NK

    60 ~ 65

    40

    1.25

    2.0

    N Female

    -10 ~ +65

    5o131206006570NK

    65 ~ 70

    40

    1.25

    2.0

    N Female

    -10 ~ +65

    5o131206006888SK

    68 ~ 88

    36

    1.3

    2.5

    SMA Female

    -20 ~ +65

    5o131206007085SK

    70 ~ 85

    40

    1.25

    1.6

    SMA Female

    -20 ~ +65

    5o131206007090NK

    70 ~ 90

    40

    1.25

    2.0

    N Female

    -20 ~ +65

    5o1312060080120SK

    80 ~ 120

    36

    1.3

    2.0

    SMA Female

    0 ~ +65

    5o1312060085135NK

    85 ~ 135

    36

    1.3

    2.4

    N Female

    -10 ~ +65

    5o1312060087108NK

    87 ~ 108

    40

    1.25

    1.2

    N Female

    -20 ~ +65

    5o1312060087108NKP200

    87 ~ 108

    40

    1.25

    1.2

    N Female

    -20 ~ +65

    5o1312060088138NK

    88 ~ 138

    36

    1.3

    2.0

    N Female

    -10 ~ +65

    5o13120600100130NK

    100 ~ 130

    40

    1.25

    1.2

    N Female

    -30 ~ +70

    5o13120600100150SK

    100 ~ 150

    40

    1.25

    2.0

    SMA Female

    -10 ~ +65

    5o13120600108118NK

    108 ~ 118

    45

    1.2

    1.0

    N Female

    -30 ~ +70

    5o13120600108118NKP200

    108 ~ 118

    45

    1.2

    1.0

    N Female

    -30 ~ +70

    5o13120600112156NK

    112 ~ 156

    40

    1.25

    1.6

    N Female

    -30 ~ +70

    5o13120600118137NK

    118 ~ 137

    45

    1.2

    1.0

    N Female

    -30 ~ +70

    5o13120600118137NKP200

    118 ~ 137

    45

    1.2

    1.0

    N Female

    -30 ~ +70

    5o13120600130180SK

    130 ~ 180

    40

    1.25

    1.2

    SMA Female

    -30 ~ +70

    5o13120600136174SK

    136 ~ 174

    44

    1.2

    10

    SMA Female

    -30 ~ +70

    5o13120600136174NKP200

    136 ~ 174

    44

    1.2

    1.0.

    N Female

    -30 ~ +70

    5o13120600148174NKP150

    148 ~ 174

    50

    1.15

    1.0

    N Female

    -30 ~ +70

    5o13120600150200NK

    150 ~ 200

    40

    1.25

    1.2

    N Female

    -30 ~ +70

    5o13120600150225SK

    150 ~ 225

    36

    1.3

    1.8

    SMA Female

    -30 ~ +70

    5o13120600170200NK

    170 ~ 200

    40

    1.25

    1.0

    N Female

    -30 ~ +70

    5o13120600170200NKP200

    170 ~ 200

    40

    1.25

    1.0

    N Female

    -30 ~ +70

    5o13120600180220SJSKSK

    180 ~ 220

    40

    1.25

    1.0

    SMA Male to SMA Female to SMA Female

    -30 ~ +70

    5o13120600200270NK

    200 ~ 270

    40

    1.25

    1.4

    N Female

    -30 ~ +70

    Basic Specifications

    Dimension

    120*60*28mm

    Impedance

    50Ω

    Forward Power

    200W

    Connector   Type

    N, SMA(Female/Male)

    Reverse   Power

    200W

    Storage Temperature

    -55~+125℃

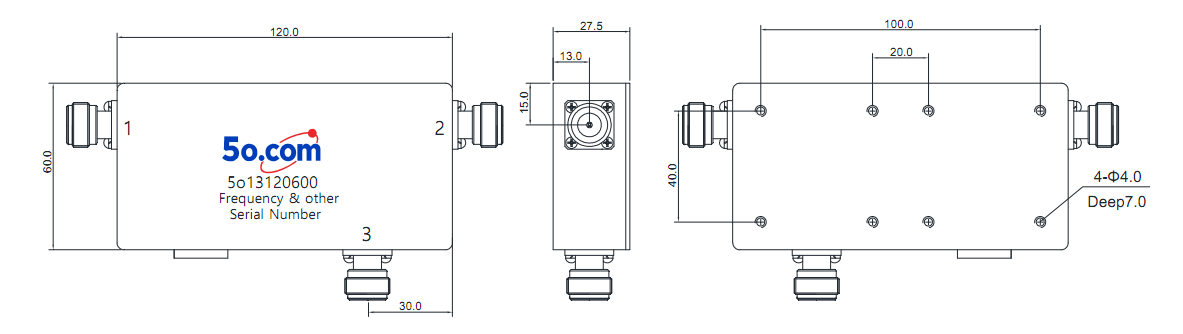

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
