Part   Number

Frequency   Range (MHz)

Isolation

(2-1)
  Min(dB)

VSWR
  Max

Insertion   Loss

(1-2)
  Max(dB)

Connector

Type

Temp.(°C)

5o13112560145150SK

136 ~ 150

36

1.3

1

SMA Female

-10 ~ +60

5o13112560150155NK

150 ~ 155

40

1.25

1

N Female

-10 ~ +70

5o13112560150170SK

150 ~ 170

36

1.3

1.2

SMA Female

-10 ~ +70

5o13112560168171SK

168 ~ 171

46

1.2

0.8

SMA Female

-30 ~ +70

5o13112560170200NK

170 ~ 200

36

1.3

1.4

N Female

-30 ~ +70

5o13112560180220SK

180 ~ 220

36

1.3

1

SMA Female

-30 ~ +70

5o13112560192232SK

192 ~ 232

40

1.25

0.8

SMA Female

-30 ~ +70

5o1311256019752075SJSKSK

197.5~207.5

46

1.2

0.8

SMA Male @ Port 1
  SMA Female @Other

-30 ~ +70

5o13112560200250SK

200 ~ 250

40

1.25

1.2

SMA Female

-30 ~ +70

5o13112560230250NK

230 ~ 250

46

1.2

0.6

N Female

-30 ~ +70

5o13112560250300SK

250 ~ 300

40

1.25

0.8

SMA Female

-30 ~ +70

5o13112560500750SK

500 ~ 750

32

1.4

1

SMA Female

-30 ~ +70

5o13112560600900SK

600 ~ 900

34

1.35

1

SMA Female

-30 ~ +70

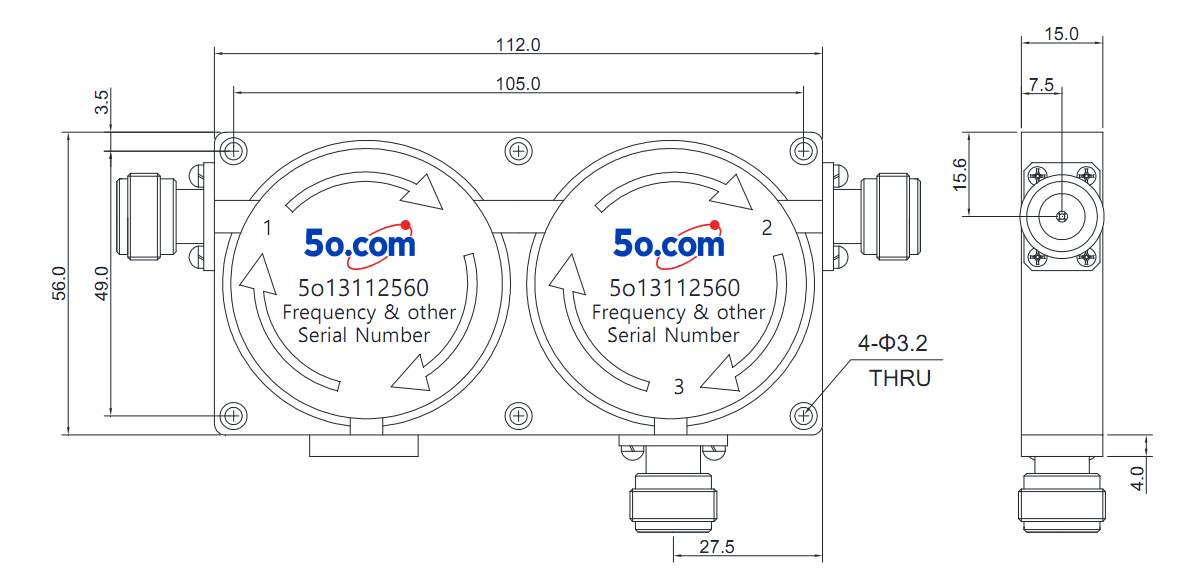

Dimension

112*56*15mm

Impedance

50Ω

Forward Power

300W

Connector   Type

N, SMA(Female/Male)

Reverse   Power

300W

Storage Temperature

-55~+125℃
