Part   Number

Frequency   Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion   Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o1270380220240

220 ~ 240

36

1.3

1.3

TAB

-20 ~ +65

5o1270380240260

240 ~ 260

36

1.3

1

TAB

-20 ~ +65

5o1270380260280

260 ~ 280

40

1.25

1

TAB

-20 ~ +65

5o1270380309339

309 ~ 339

40

1.25

0.8

TAB

-20 ~ +65

5o1270380350370

350 ~ 370

42

1.2

0.7

TAB

-20 ~ +65

5o1270380380460

380 ~ 460

36

1.3

1

TAB

-20 ~ +65

5o1270380390410

390 ~ 410

46

1.2

0.6

TAB

-30 ~ +70

5o1270380400470

400 ~ 470

40

1.25

0.8

TAB

-30 ~ +70

5o1270380413419

413 ~ 419

60

1.15

0.6

TAB

-30 ~ +70

5o1270380413419

413 ~ 419

60

1.15

0.6

TAB

-30 ~ +70

5o1270380419425

419 ~ 425

60

1.15

0.6

TAB

-30 ~ +70

5o1270380450520

450 ~ 520

40

1.25

0.8

TAB

-20 ~ +65

5o1270380600800

600 ~ 800

38

1.25

1

TAB

-20 ~ +65

5o1270380700900

700 ~ 900

40

1.25

0.8

TAB

-30 ~ +70

5o12703807001000

700 ~ 1000

32

1.4

1.2

TAB

-20 ~ +65

5o1270380770860

770 ~ 860

46

1.2

0.6

TAB

-30 ~ +70

5o1270380860872

860 ~ 872

60

1.15

0.5

TAB

-20 ~ +65

5o1270380900930

900 ~ 930

60

1.15

0.4

TAB

-40 ~ +85

5o127038010001300

1000 ~ 1300

40

1.25

0.8

TAB

-30 ~ +70

5o127038010001700

1000 ~ 1700

30

1.45

1

TAB

-30 ~ +70

5o127038012961298

1296 ~ 1298

50

1.15

0.6

TAB

-40 ~ +85

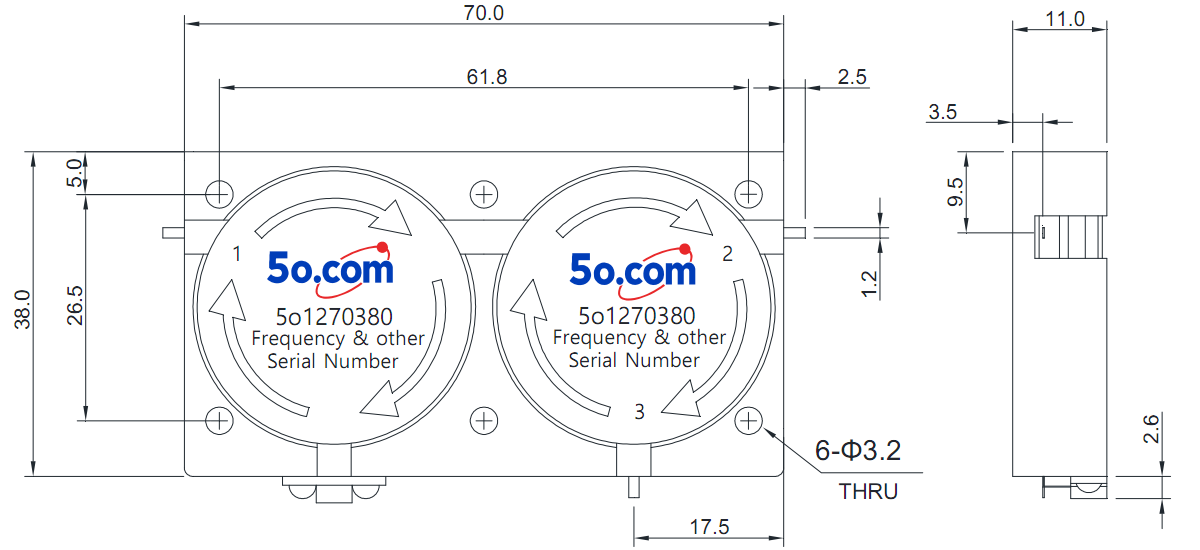

Dimension

70*38*11mm

Impedance

50Ω

Forward Power

300W

Connector   Type

TAB

Reverse   Power

300W

Storage Temperature

-55~+125℃
