    4 Port Dual Junction Drop in Circulator 0.6 ~ 5.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation

    (2-1   & 4-3)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2   & 3-4)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o12381904617698

    617 ~ 698

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12381904703803

    703 ~ 803

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o12381904824894

    824 ~ 894

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12381904860960

    860 ~ 960

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12381904925960

    925 ~ 960

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190410701210

    1070 ~ 1210

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1238190412001400

    1200 ~ 1400

    44

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190412501450

    1250 ~ 1450

    46

    1.2

    0.5

    TAB

    -40 ~ +85

    5o1238190414501550

    1450 ~ 1550

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190415001700

    1500 ~ 1700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190417102170

    1710 ~ 2170

    32

    1.4

    1.2

    TAB

    -40 ~ +85

    5o1238190418051880

    1805 ~ 1880

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1238190419201990

    1920 ~ 1990

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1238190420002400

    2000 ~ 2400

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1238190421102170

    2110 ~ 2170

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1238190423002500

    2300 ~ 2500

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190424002600

    2400 ~ 2600

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190424962690

    2496 ~ 2690

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190425002700

    2500 ~ 2700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190427003100

    2700 ~ 3100

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190427003500

    2700 ~ 3500

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o1238190431503250

    3150 ~ 3250

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1238190433003600

    3300 ~ 3600

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190435004500

    3500 ~ 4500

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o1238190436003800

    3600 ~ 3800

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190439004200

    3900 ~ 4200

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1238190439004500

    3900 ~ 4500

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1238190444004500

    4000 ~ 4500

    40

    1.2

    0.7

    TAB

    -40 ~ +85

    5o1238190442004700

    4200 ~ 4700

    40

    1.25

    0.7

    TAB

    -40 ~ +85

    5o1238190444005000

    4400 ~ 5000

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    38*19*8.6mm

    Impedance

    50Ω

    Forward Power

    60W

    Connector   Type

    TAB

    Reverse   Power

    60W

    Storage Temperature

    -55~+125℃

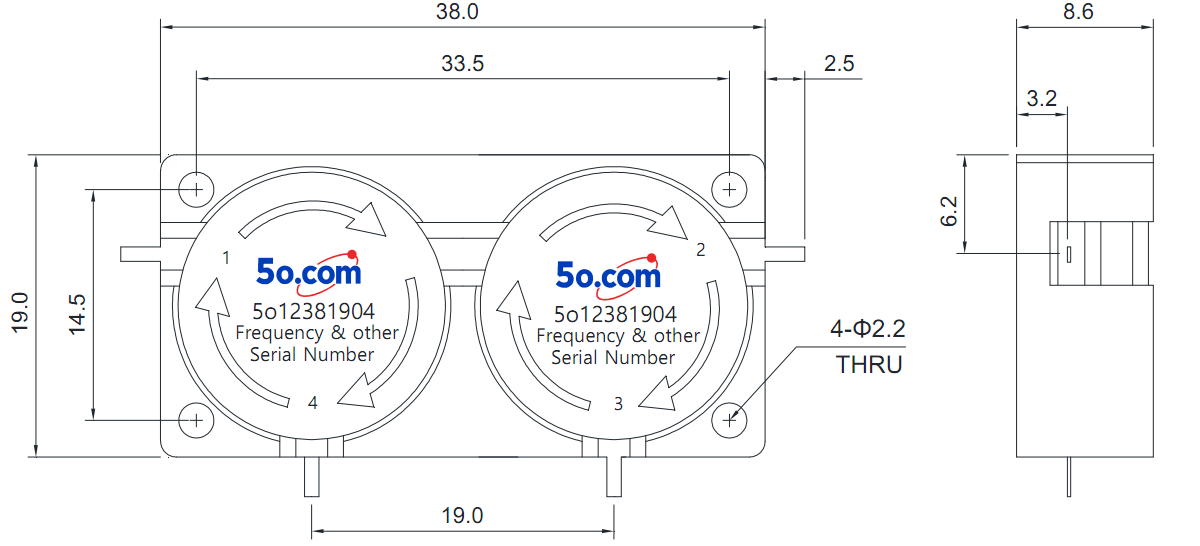

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
