    Dual Junction Drop in Circulator 0.6 to 5.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation

    (2-1)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1238190617T698

    617 ~ 698

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1238190703T803

    703 ~ 803

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o1238190824T894

    824 ~ 894

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1238190860T960

    860 ~ 960

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1238190925T960

    925 ~ 960

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381901070T1210

    1070 ~ 1210

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12381901200T1400

    1200 ~ 1400

    44

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381901250T1450

    1250 ~ 1450

    46

    1.2

    0.5

    TAB

    -40 ~ +85

    5o12381901450T1550

    1450 ~ 1550

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381901500T1700

    1500 ~ 1700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381901710T2170

    1710 ~ 2170

    32

    1.4

    1.2

    TAB

    -40 ~ +85

    5o12381901805T1880

    1805 ~ 1880

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o12381901920T1990

    1920 ~ 1990

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o12381902000T2400

    2000 ~ 2400

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12381902110T2170

    2110 ~ 2170

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o12381902300T2500

    2300 ~ 2500

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381902400T2600

    2400 ~ 2600

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381902496T2690

    2496 ~ 2690

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381902500T2700

    2500 ~ 2700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381902700T3100

    2700 ~ 3100

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381902700T3500

    2700 ~ 3500

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o12381903150T3250

    3150 ~ 3250

    50

    1.15

    0.5

    TAB

    -40 ~ +85

    5o12381903300T3600

    3300 ~ 3600

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381903500T4500

    3500 ~ 4500

    36

    1.3

    1.0

    TAB

    -40 ~ +85

    5o12381903600T3800

    3600 ~ 3800

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381903900T4200

    3900 ~ 4200

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12381903900T4500

    3900 ~ 4500

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12381904400T4500

    4000 ~ 4500

    40

    1.2

    0.7

    TAB

    -40 ~ +85

    5o12381904200T4700

    4200 ~ 4700

    40

    1.25

    0.7

    TAB

    -40 ~ +85

    5o12381904400T5000

    4400 ~ 5000

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    38*19*8.6mm

    Impedance

    50Ω

    Forward Power

    60W

    Connector   Type

    TAB

    Reverse   Power

    60W

    Storage Temperature

    -55~+125℃

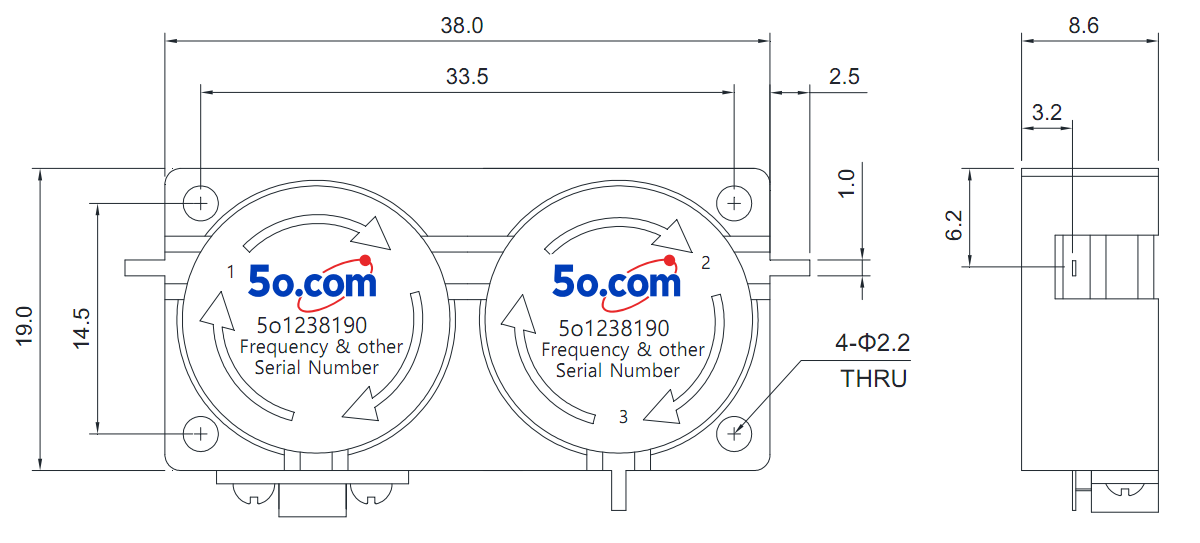

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
