    Drop in Circulator 1.0 ~ 3.8GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

     RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o114546010001050

    1000   ~ 1050

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546010701210

    1070   ~ 1210

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o114546013501550

    1350   ~ 1550

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o114546015001700

    1500   ~ 1700

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o114546017101785

    1710   ~ 1785

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546017001900

    1700   ~ 1900

    23

    1.25

    0.4

    TAB

    -40 ~ +85

    5o114546017002100

    1700   ~ 2100

    23

    1.2

    0.4

    TAB

    -40 ~ +85

    5o114546018052170

    1805   ~ 2170

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o114546018051880

    1805   ~ 1880

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546019002200

    1900   ~ 2200

    23

    1.25

    0.4

    TAB

    -40 ~ +85

    5o114546019201990

    1920   ~ 1990

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546020002300

    2000   ~ 2300

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o114546020002500

    2000   ~ 2500

    18

    1.3

    0.5

    TAB

    -20 ~ +80

    5o114546021102170

    2110   ~ 2170

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546023002500

    2300   ~ 2500

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546023502550

    2350   ~ 2550

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546024002600

    2400   ~ 2600

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546025002700

    2500   ~ 2700

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o114546027003000

    2700 ~ 3000

    20

    1.2

    0.4

    TAB

    -40 ~ +85

    5o114546027003100

    2700   ~ 3100

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o114546031003500

    3100   ~ 3500

    20

    1.25

    0.3

    TAB

    -40 ~ +85

    5o114546034003800

    3400   ~ 3800

    20

    1.25

    0. 4

    TAB

    -40 ~ +85

     Basic Specifications

    Dimension

    45*46*26mm

    Impedance

    50Ω

    Forward Power

    600W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    600W

    Storage Temperature

    -55~+125℃

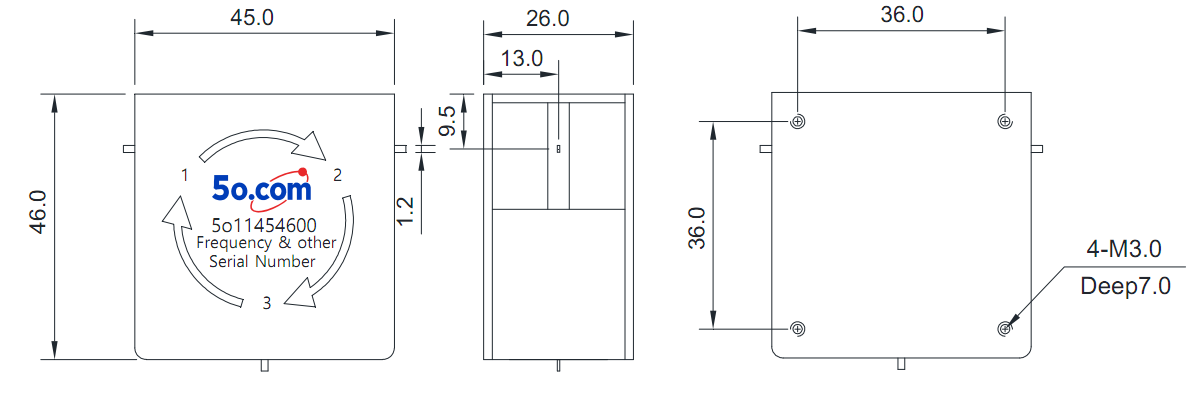

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
