    Drop in Circulator 200 ~ 1300MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

     RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1142420200250

    200 ~ 250

    16

    1.4

    0.65

    TAB

    -30 ~ +70

    5o1142420250260

    250 ~ 260

    23

    1.2

    0.3

    TAB

    -30 ~ +70

    5o1142420250300

    250 ~ 300

    18

    1.3

    0.4

    TAB

    -30 ~ +70

    5o1142420289359

    289 ~ 359

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o1142420300400

    300 ~ 400

    17

    1.3

    0.6

    TAB

    -20 ~ +60

    5o1142420350450

    350 ~ 450

    20

    1.25

    0.5

    TAB

    -20 ~ +60

    5o1142420350400

    350 ~ 400

    23

    1.2

    0.35

    TAB

    -30 ~ +70

    5o1142420350500

    350 ~ 500

    16

    1.4

    0.6

    TAB

    -20 ~ +60

    5o1142420380460

    380 ~ 460

    23

    1.2

    0.4

    TAB

    -20 ~ +60

    5o1142420380500

    380 ~ 500

    20

    1.25

    0.5

    TAB

    -20 ~ +60

    5o1142420400500

    400 ~ 500

    20

    1.25

    0.4

    TAB

    -30 ~ +70

    5o1142420400512

    400 ~ 512

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o1142420400430

    400 ~ 430

    25

    1.15

    0.25

    TAB

    -30 ~ +70

    5o1142420440470

    440 ~ 470

    25

    1.15

    0.25

    TAB

    -30 ~ +70

    5o1142420500700

    500 ~ 700

    17

    1.35

    0.5

    TAB

    -30 ~ +70

    5o11424207001000

    700 ~ 1000

    18

    1.3

    0.6

    TAB

    -30 ~ +70

    Basic Specifications

    Dimension

    42*42*13mm

    Impedance

    50Ω

    Forward Power

    300W

    Operating Temperature

    -30 ~ +70℃

    Reverse Power

    300W

    Storage Temperature

    -55~+125℃

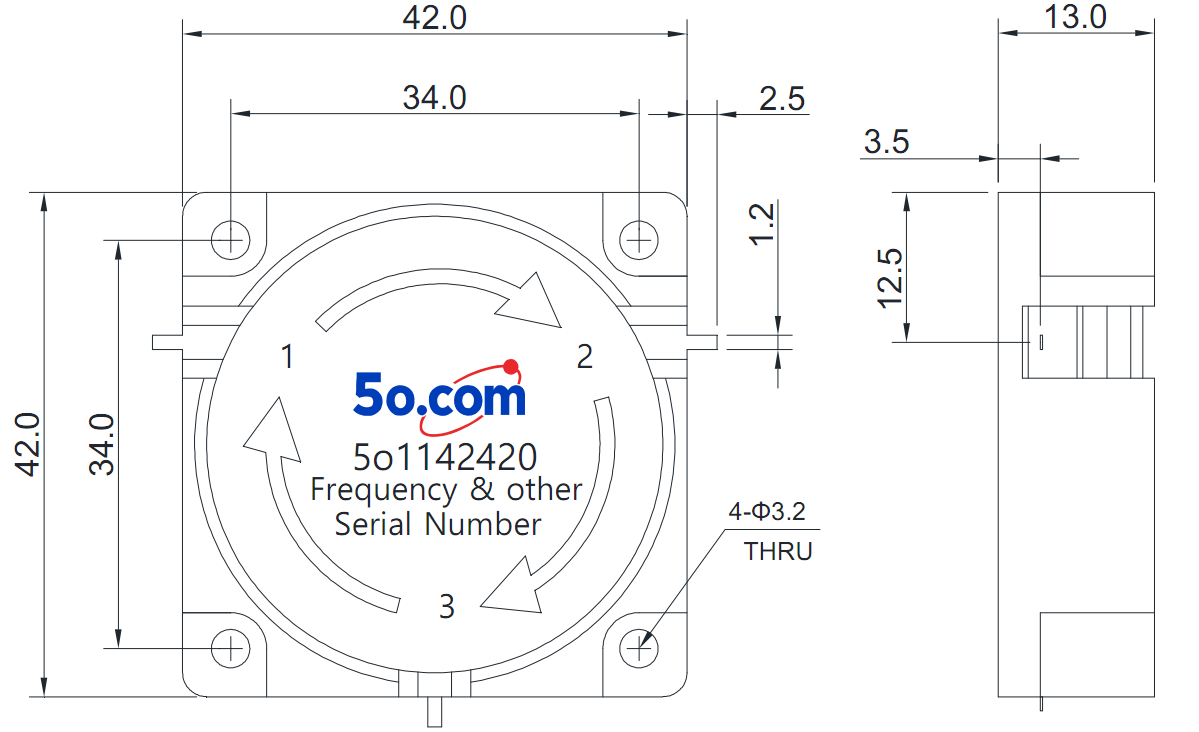

    Overall Dimension(mm)




    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
