Drop in Circulator 3.5 to 6.5GHz 5o1125281

Drop in Circulator 3.5 ~ 6.5GHz

Application

▶RF power amplifier protection.

▶Digital, Satellite, Mobile Communication.

▶Medical, Communication, Security.

▶Military, Space and Commercial applications.

RF Characteristics

Part Number

Frequency Range (GHz)

Isolation
Min(dB)

VSWR
Max

Insertion Loss
Max(dB)

Connector

Type

5o11252813565

3.5 ~ 6.5

1.3

0.5

TAB

Basic Specifications

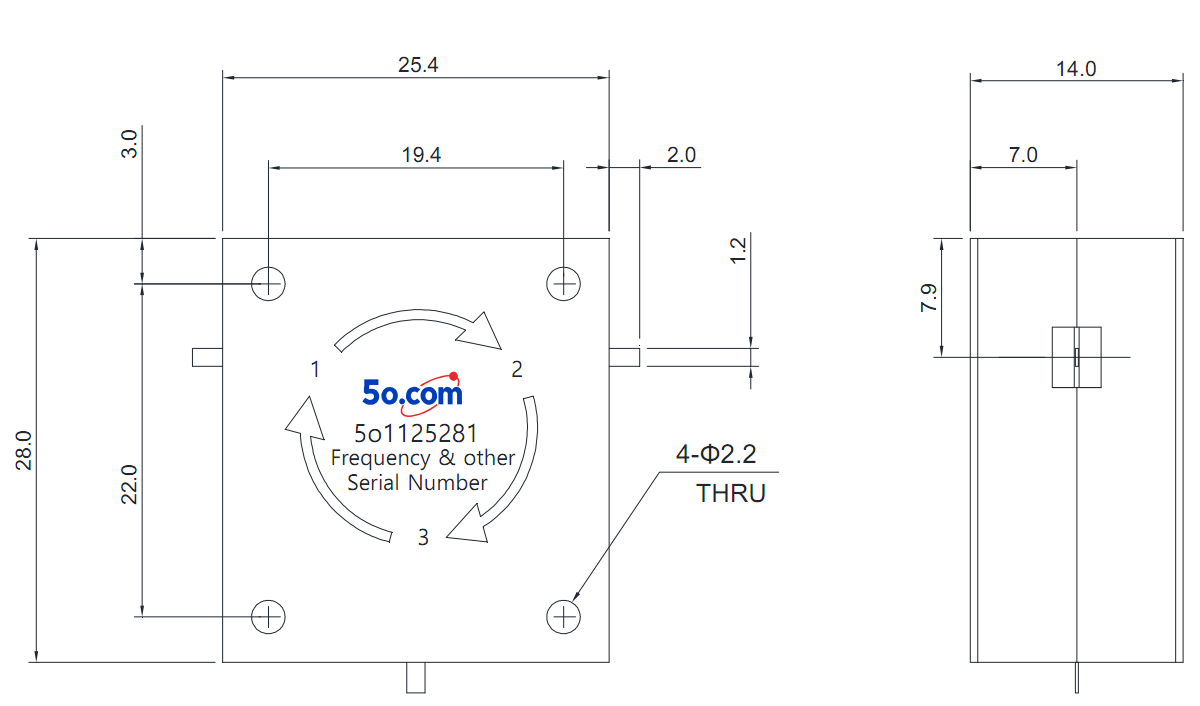

Overall Dimension(mm)

Instructions Tolerances: ±2% unless otherwise stated.

◆It can be dual junction or multiple for high isolation.

◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

◆Only some common frequencies in the table can be produced according to the user's requirements.

◆It supports a one-year standard warranty.
