    Drop in Circulator 0.7 ~ 10.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1112121703748

    703 ~ 748

    16

    1.4

    0.7

    TAB

    -40 ~ +85

    5o1112121758803

    758 ~ 803

    16

    1.4

    0.6

    TAB

    -40 ~ +85

    5o1112121791862

    791 ~ 862

    16

    1.4

    0.7

    TAB

    -40 ~ +85

    5o1112121824894

    824 ~ 894

    18

    1.3

    0.55

    TAB

    -40 ~ +85

    5o1112121880960

    880 ~ 960

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o11121219901130

    990 ~ 1130

    15

    1.5

    0.7

    TAB

    -40 ~ +85

    5o111212112301350

    1230 ~ 1350

    18

    1.3

    0.4

    TAB

    -40 ~ +85

    5o111212113301390

    1330 ~ 1390

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212114271517

    1427 ~ 1517

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212115651585

    1565 ~ 1585

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212116161620

    1616 ~ 1620

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212117101785

    1710 ~ 1785

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212118051880

    1805 ~ 1880

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212118052170

    1805 ~ 2170

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o111212119201990

    1920 ~ 1990

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212121102170

    2110 ~ 2170

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212123002500

    2300 ~ 2500

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212124002600

    2400 ~ 2600

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212124962690

    2496 ~ 2690

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212125002700

    2500 ~ 2700

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212127003100

    2700 ~ 3100

    21

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212129003300

    2900 ~ 3300

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212131003600

    3100 ~ 3600

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212133003600

    3300 ~ 3600

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212137004200

    3700 ~ 4200

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212142004400

    4200 ~ 4400

    21

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212144005000

    4400 ~ 5000

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212148005000

    4800 ~ 5000

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212150005500

    5000 ~ 5500

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212150006000

    5000 ~ 6000

    19

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212155006000

    5500 ~ 6000

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o111212158006200

    5800 ~ 6200

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212162006800

    6200 ~ 6800

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212165007000

    6500 ~ 7000

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212170008000

    7000 ~ 8000

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212179008400

    7900 ~ 8400

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o111212185009500

    8500 ~ 9500

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o1112121900010000

    9000~10000

    20

    1.25

    0.4

    TAB

    -40 ~ +85

     Basic Specifications

    Dimension

    12.7*12.7*8 mm

    Impedance

    50Ω

    Forward Power

    60W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    60W

    Storage Temperature

    -55~+125℃

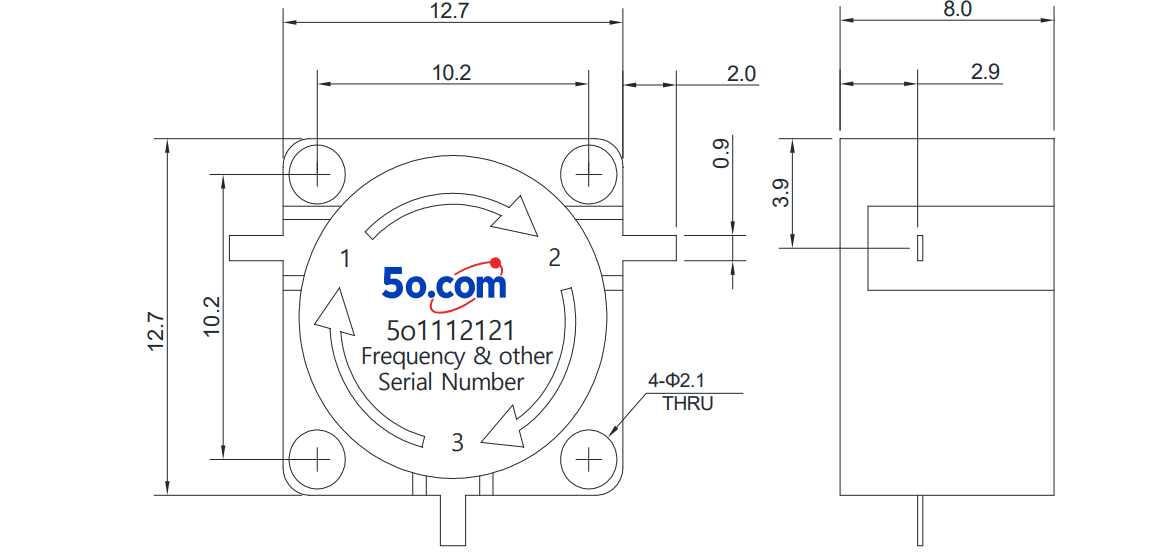

    Overall Dimension(mm)




    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
