    Drop in Circulator 70 ~ 130MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1110010007075

    70 ~ 75

    16

    1.45

    1.2

    TAB

    0 ~ +70

    5o1110010007585

    75 ~ 85

    16

    1.45

    1.2

    TAB

    0 ~ +70

    5o1110010007696

    76 ~ 96

    16

    1.45

    1.2

    TAB

    0 ~ +70

    5o1110010008090

    80 ~ 90

    16

    1.45

    0.8

    TAB

    0 ~ +70

    5o11100100088108

    88 ~ 108

    17

    1.35

    0.8

    TAB

    0 ~ +70

    5o111001000110130

    110 ~ 130

    20

    1.25

    0.5

    TAB

    0 ~ +70

     Basic Specifications

    Dimension

    100*100*40mm

    Impedance

    50Ω

    Forward Power

    500W

    Operating Temperature

    0 ~ +70℃

    Reverse Power

    500W

    Storage Temperature

    -55~+125℃

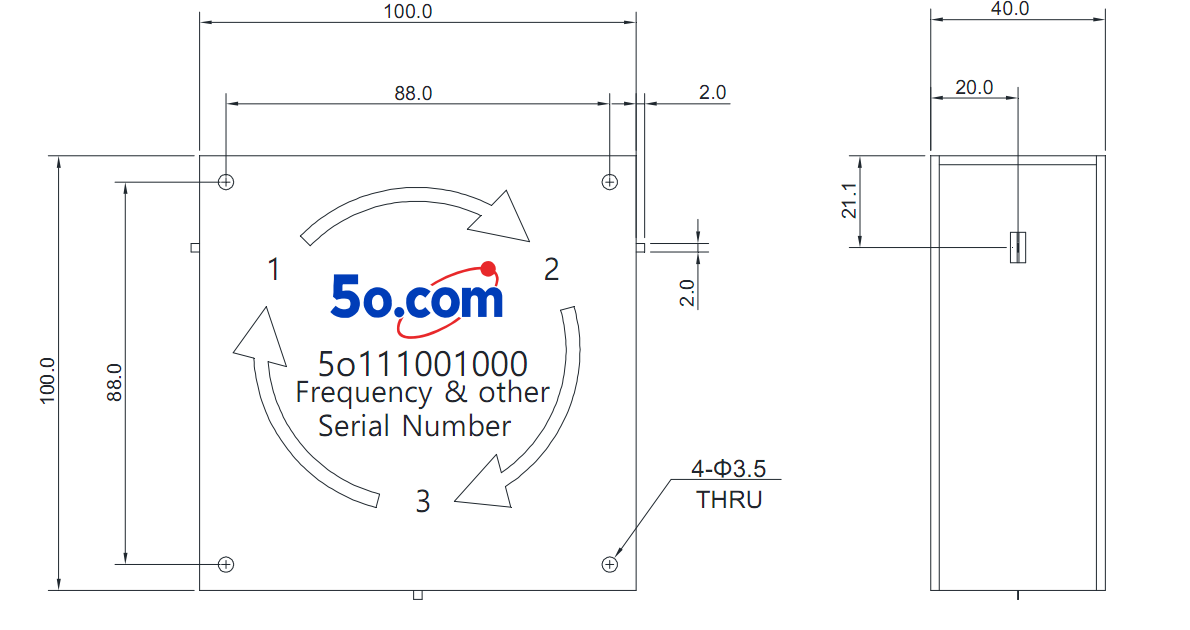

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
