    Coaxial Circulator 60 ~200MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o10808016265NK

    62   ~ 65

    16

    1.4

    1.5

    N Female

    0   ~ +70

    5o10808017075NK

    70   ~ 75

    18

    1.3

    1.2

    N Female

    0   ~ +70

    5o10808017580NK

    75   ~ 80

    18

    1.3

    0.9

    N Female

    0   ~ +70

    5o10808018125NK

    81.25

    20

    1.25

    0.6

    N Female

    0   ~ +70

    5o10808018090NK

    80   ~ 90

    18

    1.3

    0.8

    N Female

    0   ~ +70

    5o10808018595NK

    85   ~ 95

    18

    1.3

    0.7

    N Female

    0   ~ +70

    5o1080801108118NK

    108   ~ 118

    18

    1.3

    0.5

    N Female

    0   ~ +70

    5o1080801118137NK

    118   ~ 137

    18

    1.3

    0.5

    N Female

    0   ~ +70

    5o1080801130150NK

    130   ~ 150

    20

    1.25

    0.5

    N Female

    0   ~ +70

    5o1080801148174NK

    148   ~ 174

    20

    1.25

    0.5

    N Female

    0   ~ +70

    5o10808011625NK

    162.5

    25

    1.15

    0.2

    N Female

    0   ~ +70

    Basic Specifications

    Dimension

    80*80*18 mm

    Forward Power

    500W

    Reverse Power

    500W

    Connector Type

    N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

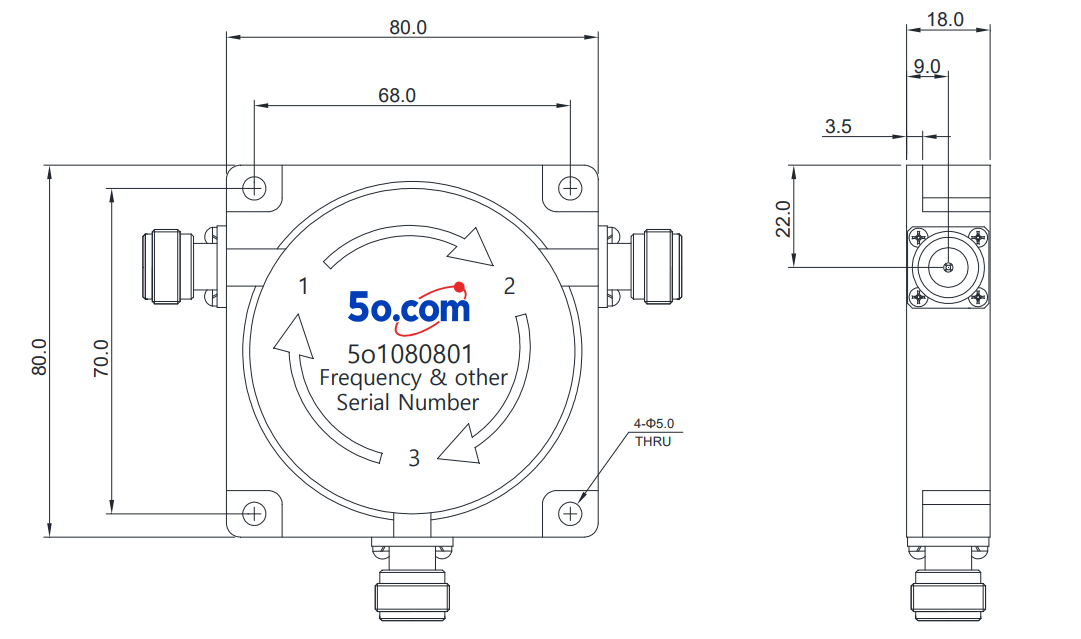

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
