    Coaxial Circulator 10 ~ 55MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o10808001012SK

    10 ~ 12

    11

    1.8

    5.0

    SMA Female

    +20 ~ +60

    5o10808001271314407SK

    12.713 ~ 14.407

    11

    1.8

    5.0

    SMA Female

    +20 ~ +60

    5o10808001314SK

    13 ~ 14

    14

    1.5

    5.0

    SMA Female

    +20 ~ +60

    5o10808001820SK

    18 ~ 20

    15

    1.45

    5.0

    SMA Female

    +20 ~ +60

    5o10808002530SK

    25 ~ 30

    12

    1.45

    3.5

    SMA Female

    +10 ~ +60

    5o10808002628SK

    26 ~ 28

    15

    1.45

    3.0

    SMA Female

    +10 ~ +60

    5o1080800285305NK

    28.5 ~ 30.5

    16

    1.4

    2.8

    N Female

    +10 ~ +60

    5o10808003032NK

    30 ~ 32

    16

    1.4

    1.8

    N Female

    +10 ~ +60

    5o10808003035NK

    30 ~ 35

    15

    1.5

    2.5

    N Female

    +10 ~ +60

    5o10808003545SK

    35 ~ 45

    16

    1.4

    3.0

    SMA Female

    +10 ~ +60

    5o10808004450NKNJNK

    44 ~ 50

    20

    1.25

    1.2

    N Female to N Male to N Female

    25±5

    17

    1.35

    1.5

    +20 ~ +60

    Basic Specifications

    Dimension

    80*80*28 mm

    Forward Power

    100W

    Reverse Power

    100W

    Connector Type

    N(Male/Female), SMA(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

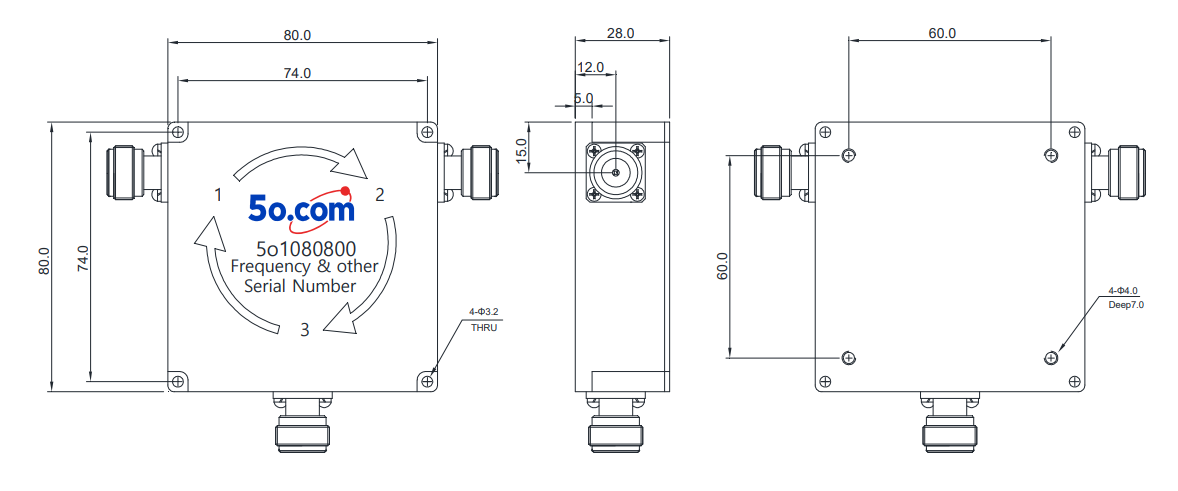

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
