    Coaxial Circulator 0.8 ~ 2.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
      (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Forward Power(W)

    Reverse Power(W)

    Connector

    Type

    5o1272720082NK

    0.8 ~ 2.0

    12

    1.6

    1.3

    300

    300

    N Female

    5o1272720082SK

    0.8 ~ 2.0

    12

    1.6

    1.3

    100

    100

    SMA Female

    Basic Specifications

    Dimension

    72*72*27.4mm

    Operating Temperature

    +10 ~ +70℃

    Impedance

    50Ω

    Storage Temperature

    -55 ~+125℃

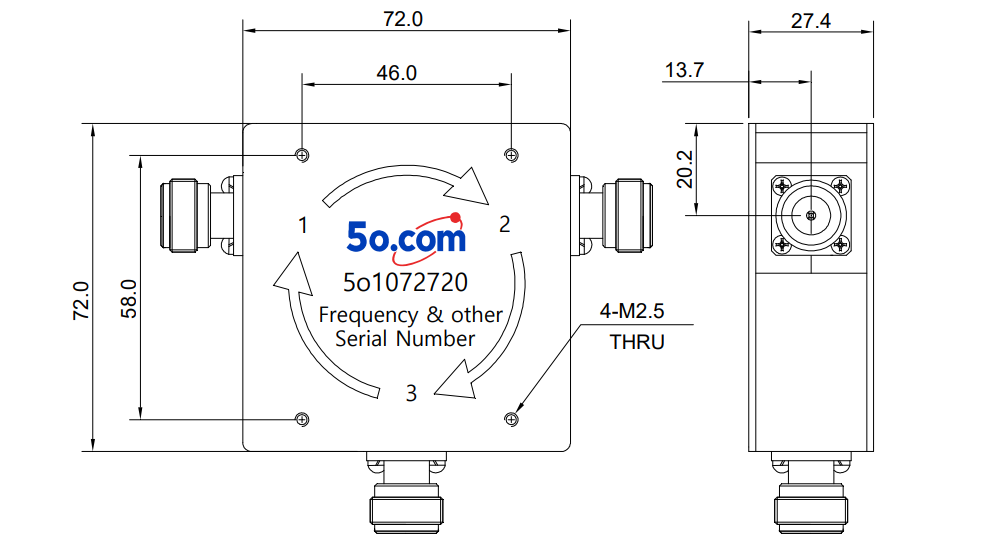

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
