    Coaxial Circulator 130 ~ 900MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1056560136150NK

    136   ~ 150

    18

    1.3

    0.5

    N Female

    -10   ~ +60

    5o1056560150155SK

    150   ~ 155

    20

    1.25

    0.5

    SMA Female

    -10   ~ +70

    5o1056560150170SK

    150   ~ 170

    18

    1.3

    0.6

    SMA Female

    -10   ~ +70

    5o1056560168171NK

    168   ~ 171

    23

    1.2

    0.4

    N Female

    -30   ~ +70

    5o1056560170200SK

    170   ~ 200

    18

    1.3

    0.7

    SMA Female

    -30   ~ +70

    5o1056560180220SK

    180   ~ 220

    18

    1.3

    0.5

    SMA Female

    -30   ~ +70

    5o1056560192232NK

    192   ~ 232

    20

    1.25

    0.4

    N Female

    -30   ~ +70

    5o105656019752075SJSK

    197.5 ~   207.5

    23

    1.2

    0.4

    SMA Male to SMA Female

    -30   ~ +70

    5o1056560200250SK

    200   ~ 250

    20

    1.25

    0.6

    SMA Female

    -30   ~ +70

    5o1056560230250NK

    230   ~ 250

    23

    1.2

    0.3

    N Female

    -30   ~ +70

    5o1056560250300SK

    250   ~ 300

    20

    1.25

    0.4

    SMA Female

    -30   ~ +70

    5o1056560400600SK

    400   ~ 600

    15

    1.5

    0.6

    SMA Female

    -30   ~ +70

    5o1056560500750SK

    500   ~ 750

    16

    1.4

    0.5

    SMA Female

    -30   ~ +70

    5o1056560600900SK

    600   ~ 900

    17

    1.35

    0.5

    SMA Female

    -30   ~ +70

    Basic Specifications

    Dimension

    56*56*15mm

    Forward Power

    300W/100W

    Reverse Power

    300W/100W

    Connector Type

    SMA (Male/Female), N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

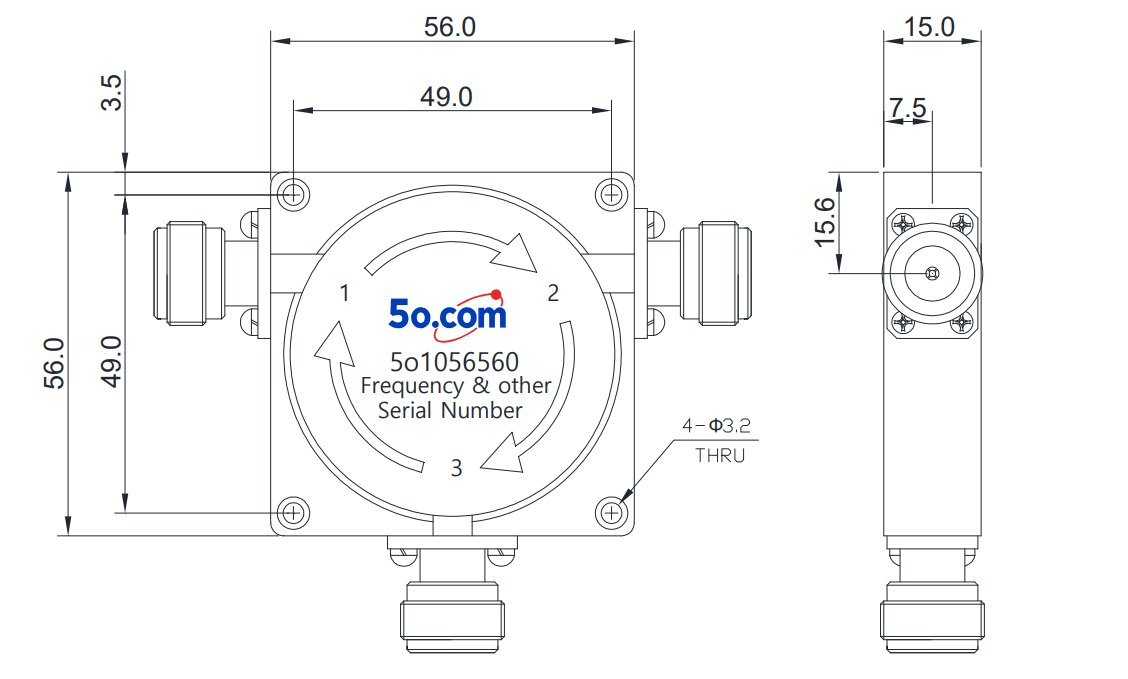

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
