    Coaxial Circulator 300W 4.0 ~ 8.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o105654048NK

    4.0 ~ 8.0

    16

    1.4

    0.6

    N Female

    Basic Specifications

    Dimension

    56*54.3*36mm

    Impedance

    50Ω

    Forward Power

    300W

    Operating Temperature

    -30 ~ +70℃

    Reverse Power

    300W

    Storage Temperature

    -55~+125℃

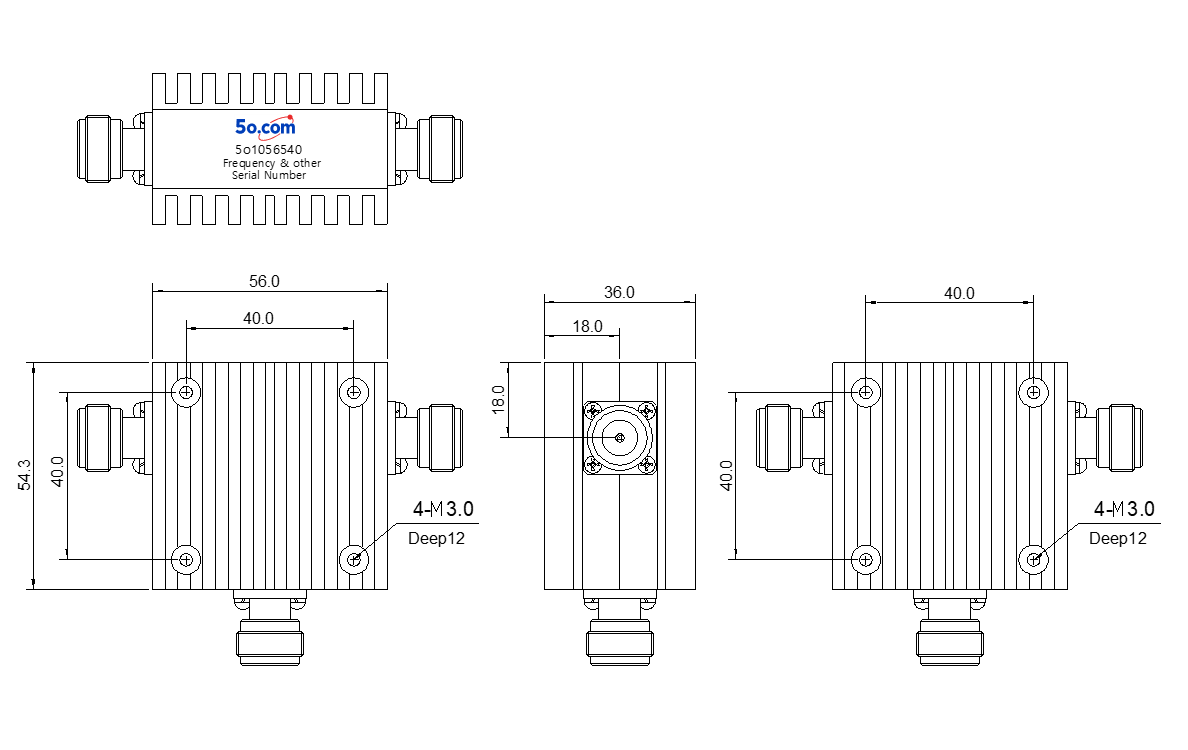

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
