    Coaxial Circulator 1.0 ~ 3.8GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp. (°C)

    5o104546010001050NK

    1000 ~ 1050

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546010701210NK

    1070 ~ 1210

    20

    1.25

    0.4

    N Female

    -40 ~ +85

    5o104546013501550NK

    1350 ~ 1550

    20

    1.25

    0.4

    N Female

    -40 ~ +85

    5o104546015001700NK

    1500 ~ 1700

    20

    1.25

    0.4

    N Female

    -40 ~ +85

    5o104546017101785NK

    1710 ~ 1785

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546017001900NKNJNK

    1700 ~ 1900

    23

    1.25

    0.4

    N Female to N Male N Female

    -40 ~ +85

    5o104546017002100NK

    1700 ~ 2100

    23

    1.2

    0.4

    N Female

    -40 ~ +85

    5o104546018052170NK

    1805 ~ 2170

    20

    1.25

    0.4

    N Female

    -40 ~ +85

    5o104546018051880NK

    1805 ~ 1880

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546019002200NKNJNK

    1900 ~ 2200

    23

    1.25

    0.4

    N Female o N Male to N Female

    -40 ~ +85

    5o104546019201990NK

    1920 ~ 1990

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546020002300NK

    2000 ~ 2300

    20

    1.25

    0.4

    N Female

    -40 ~ +85

    5o104546020002500NK

    2000 ~ 2500

    18

    1.3

    0.5

    N Female

    -20 ~ +80

    5o104546021102170NK

    2110 ~ 2170

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546023002500NK

    2300 ~ 2500

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546023502550NK

    2350 ~ 2550

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546024002600NK

    2400 ~ 2600

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546025002700NK

    2500 ~ 2700

    23

    1.2

    0.3

    N Female

    -40 ~ +85

    5o104546027003000NK

    2700 ~   3000

    20

    1.2

    0.4

    N Female

    -40 ~ +85

    5o104546027003100NK

    2700 ~ 3100

    18

    1.3

    0.5

    N Female

    -40 ~ +85

    5o104546029003600NK

    2900 ~ 3600

    18

    1.3

    0.5

    N Female

    -40 ~ +85

    5o104546031003500NK

    3100 ~ 3500

    20

    1.25

    0.3

    N Female

    -40 ~ +85

    5o104546034003800NK

    3400 ~ 3800

    20

    1.25

    0. 4

    N Female

    -40 ~ +85

     Basic Specifications

    Dimension

    45*46*26mm

    Forward Power

    600W

    Reverse Power

    600W

    Connector Type

    N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

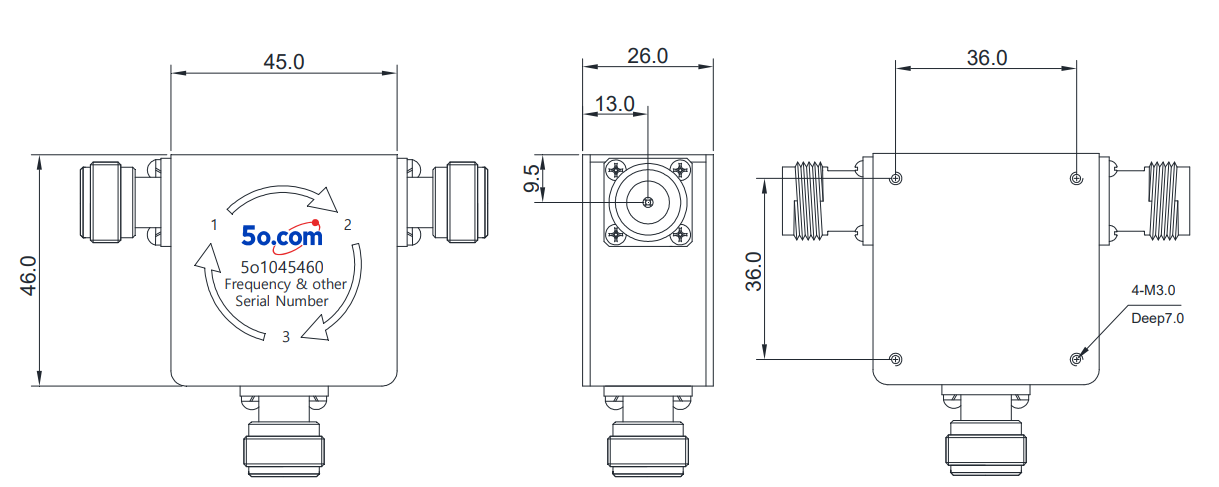

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
