Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o1035380220240NK

220 ~ 240

18

1.3

0.65

N Female

-20 ~ +65

5o1035380240260NK

240 ~ 260

18

1.3

0.5

N Female

-20 ~ +65

5o1035380260280NK

260 ~ 280

20

1.25

0.5

N Female

-20 ~ +65

5o1035380309339NK

309 ~ 339

20

1.25

0.4

N Female

-20 ~ +65

5o1035380350370NK

350 ~ 370

21

1.2

0.35

N Female

-20 ~ +65

5o1035380380460SK

380 ~ 460

18

1.3

0.5

SMA Female

-20 ~ +65

5o1035380390410SK

390 ~ 410

23

1.2

0.3

SMA Female

-30 ~ +70

5o1035380400470SK

400 ~ 470

20

1.25

0.4

SMA Female

-30 ~ +70

5o1035380413419SK

413 ~ 419

30

1.15

0.3

SMA Female

-30 ~ +70

5o1035380413419NKNJNK

413 ~ 419

30

1.15

0.3

N Female to N Male to N Female

-30 ~ +70

5o1035380419425NKNJNK

419 ~ 425

30

1.15

0.3

N Female to N Male to N Female

-30 ~ +70

5o1035380450520NK

450 ~ 520

20

1.25

0.4

N Female

-20 ~ +65

5o1035380600800SK

600 ~ 800

19

1.25

0.5

SMA Female

-20 ~ +65

5o1035380700900SK

700 ~ 900

20

1.25

0.4

SMA Female

-30 ~ +70

5o10353807001000SK

700 ~ 1000

16

1.4

0.6

SMA Female

-20 ~ +65

5o1035380770860SK

770 ~ 860

23

1.2

0.3

SMA Female

-30 ~ +70

5o1035380860872SK

860 ~ 872

30

1.15

0.25

SMA Female

-20 ~ +65

5o1035380900930SK

900 ~ 930

30

1.15

0.2

SMA Female

-40 ~ +85

5o103538010001300NK

1000 ~   1300

20

1.25

0.4

N Female

-30 ~ +70

5o103538011001700NK

1100 ~ 1700

15

1.45

0.5

N Female

-30 ~ +70

5o103538012961298NK

1296 ~ 1298

30

1.15

0.2

N Female

-30 ~ +70

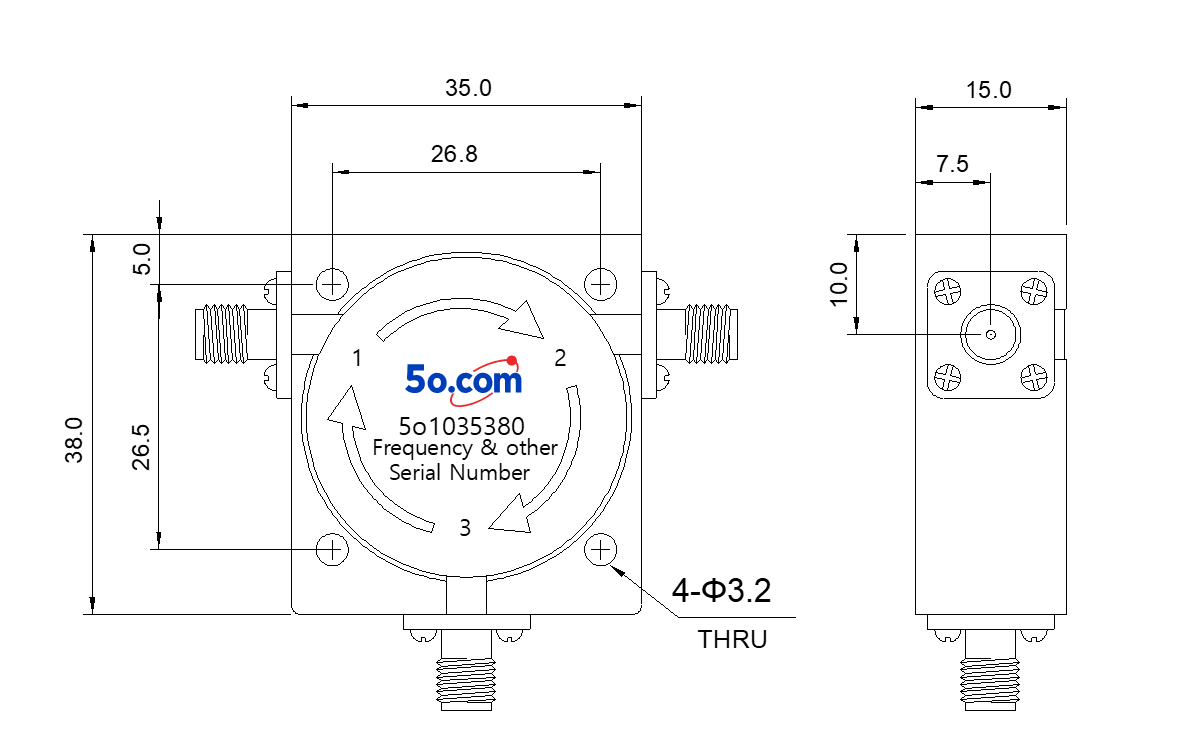

Dimension

35*38*15mm

Forward Power

300W/100W

Reverse Power

300W/100W

Connector Type

SMA(Male/Female), N(Male/Female)

Storage Temperature

-55℃~+125℃

Impedance

50Ω
