    Coaxial Circulator 3.0 ~ 6.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation

    Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type


    5o102528136SK

    3.0 ~ 6.0

    18

    1.3

    0.5

    SMA Female



    5o102528136NK

    3.0 ~ 6.0

    18

    1.3

    0.5

    N Female



    Basic Specifications

    Dimension

    25.4*28*14mm

    Impedance

    50Ω

    Forward Power

    100W

    Operating Temperature

    -55 ~ +85℃

    Reverse Power

    100W

    Storage Temperature

    -55~+125℃

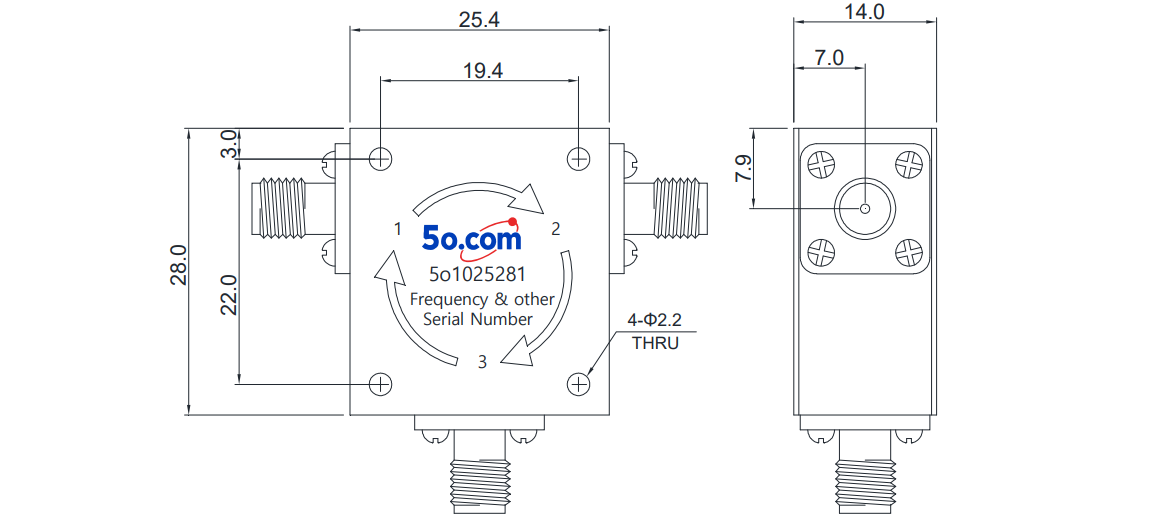

    Overall Dimension(mm,  Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
