    Coaxial Circulator 18.0 ~ 26.5GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
      (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o101318318265SK

    18.0 ~ 26.5

    14.5

    1.6

    1.1

    SMA Female

    14.0

    1.6

    1.2

    Basic Specifications

    Dimension

    13*18*12.8mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating Temperature

    -40 ~ +80℃

    Reverse Power

    10W

    Storage Temperature

    -55 ~+125℃

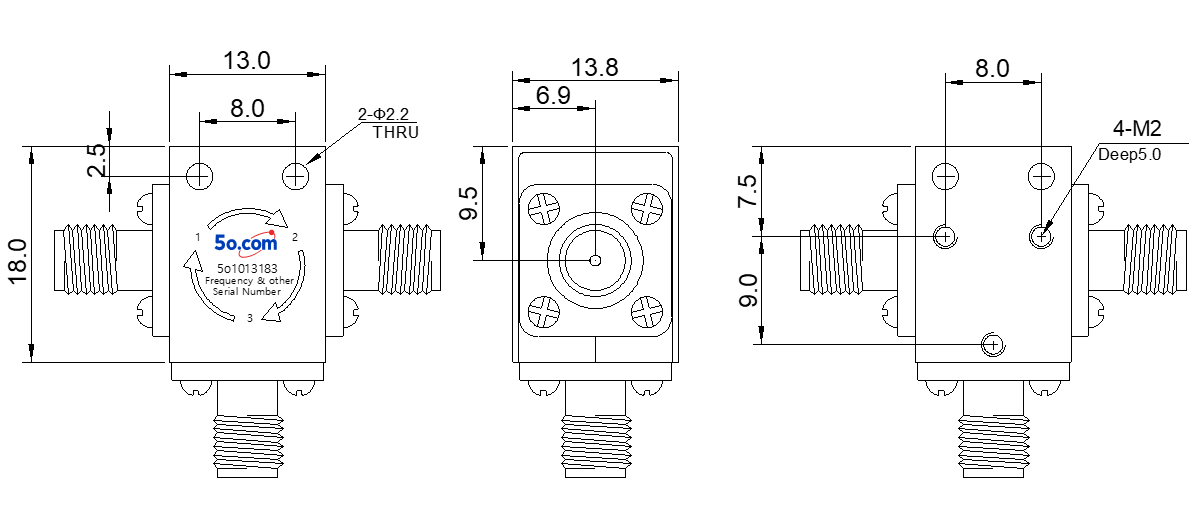

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)

    5o1013183.png Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female , etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
