    Coaxial Circulator 12.0 ~ 18.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
          (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o10131821218SK

    12.0 ~ 18.0

    18

    1.3

    0.5

    SMA Female

    5o10131821218SJSKSK

    12.0 ~ 18.0

    18

    1.3

    0.5

    SMA Male to SMA Female to SMA Female

    5o10131821218SKSJSK

    12.0 ~ 18.0

    18

    1.3

    0.5

    SMA Female to SMA Male to SMA Female

    Basic Specifications

    Dimension

    13*18*13.8mm

    Impedance

    50Ω

    Forward Power

    60W

    Operating Temperature

    -55 ~ +85℃

    Reverse Power

    60W

    Storage Temperature

    -55 ~+125℃

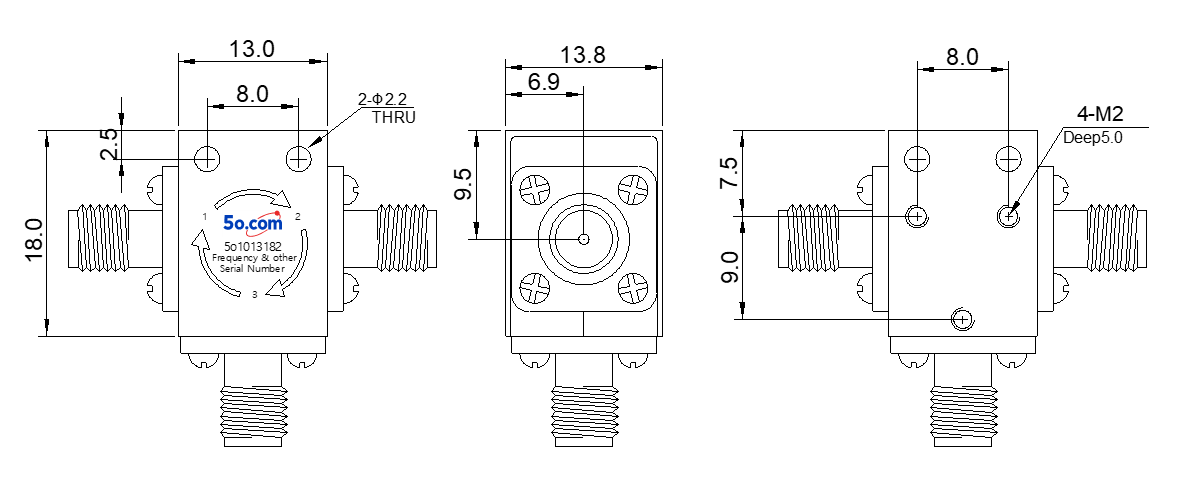

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/ Female, 2.92mm Male/ Female etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
