    Coaxial Circulator 6.0 ~ 40.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o101318068SK

    6.0 ~   8.0

    18

    1.3

    0.5

    SMA Female

    -55 ~   +85

    5o101318079SK

    7.0 ~   9.0

    20

    1.25

    0.5

    SMA Female

    -55 ~   +85

    5o10131807477SK

    7.4 ~   7.7

    23

    1.2

    0.3

    SMA Female

    -55 ~   +85

    5o10131807886SK

    7.8 ~   8.6

    23

    1.2

    0.3

    SMA Female

    -55 ~   +85

    5o1013180810SK

    8.0 ~   10.0

    20

    1.2

    0.4

    SMA Female

    -55 ~   +85

    5o1013180811SK

    8.0 ~   11.0

    20

    1.25

    0.4

    SMA Female

    -55 ~   +85

    5o1013180812SK

    8.0 ~   12.0

    18

    1.3

    0.5

    SMA Female

    -55 ~   +85

    5o1013180910SK

    9.0 ~   10.0

    23

    1.2

    0.3

    SMA Female

    -55 ~   +85

    5o1013180911SK

    9.0 ~   11.0

    20

    1.2

    0.4

    SMA Female

    -55 ~   +85

    5o10131809395SJ

    9.3 ~   9.5

    23

    1.2

    0.3

    SMA-Male

    -55 ~   +85

    5o10131801013SK

    10.0 ~   13.0

    21

    1.2

    0.4

    SMA Female

    -55 ~   +85

    5o10131801015SKSJSK

    10.0 ~   15.0

    18

    1.35

    0.6

    SMA Female to SMA Male to SMA Female

    -55 ~   +85

    5o1013180107133SKSJSK

    10.7 ~   13.3

    23

    1.2

    0.35

    SMA Female to SMA Male to SMA Female

    -55 ~   +85

    5o10131801218SK

    12.0 ~   18.0

    18

    1.3

    0.5

    SMA Female

    -55 ~   +85

    5o10131801375145SK

    13.75   ~ 14.5

    23

    1.2

    0.3

    SMA Female

    -55 ~   +85

    5o1013180138178SK

    13.8 ~   17.8

    18

    1.3

    0.5

    SMA Female

    -55 ~   +85

    5o1013180155165SK

    15.5 ~   16.5

    23

    1.2

    0.3

    SMA Female

    -55 ~   +85

    5o10131801618SK

    16.0 ~   18.0

    20

    1.25

    0.5

    SMA Female

    -55 ~   +85

    5o10131801820SK

    18.0 ~ 20.0

    20

    1.25

    0.5

    SMA Female

    -55 ~   +85

    5o10131801822SK

    18.0 ~   22.0

    18

    1.3

    0.6

    SMA Female

    -40 ~   +85

    5o10131802123SK

    21.0 ~   23.0

    20

    1.25

    0.5

    SMA Female

    -40 ~   +85

    5o10131802224SK

    22.0 ~   24.0

    20

    1.25

    0.5

    SMA Female

    -40 ~   +85

    5o10131802325SK

    23.0 ~   25.0

    20

    1.25

    0.5

    SMA Female

    -40 ~   +85

    5o10131802426KK

    24.0 ~   26.0

    20

    1.25

    0.5

    2.92mm Female

    -40 ~   +85

    5o10131802425275KK

    24.25   ~ 27.5

    18

    1.3

    0.6

    2.92mm Female

    -40 ~   +85

    5o10131802527KK

    25.0 ~   27.0

    20

    1.25

    0.5

    2.92mm Female

    -40 ~   +85

    5o10131802729KK

    27.0 ~   29.0

    20

    1.25

    0.5

    2.92mm Female

    -40 ~   +85

    5o10131802731KK

    27.0 ~   31.0

    16

    1.4

    1.1

    2.92mm Female

    -40 ~   +85

    5o10131803337KK

    33.0 ~   37.0

    16

    1.4

    1.2

    2.92mm Female

    -40 ~   +85

    5o10131803436KK

    34.0 ~   36.0

    16

    1.4

    1.2

    2.92mm Female

    -40 ~   +85

     Basic Specifications

    Dimension

    13*18*13.8 mm

    Forward Power

    60W

    Reverse Power

    60W

    Connector Type

    SMA (Male/Female), 2.92mm(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

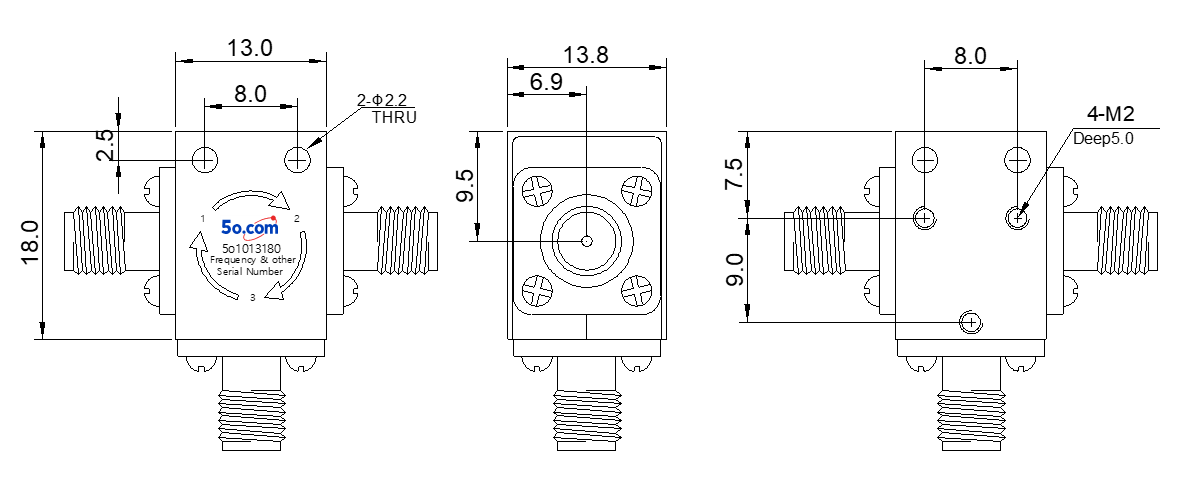

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, 2.92mm Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
