    Coaxial Circulator 100 ~ 200MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o101201400100102DK

    100 ~ 102

    23

    1.2

    0.4

    7/16 Female

    5o101201400106108DK

    106 ~ 108

    23

    1.2

    0.4

    7/16 Female

    5o101201400118121DK

    118 ~ 121

    23

    1.2

    0.4

    7/16 Female

    5o101201400127129DK

    127 ~ 129

    23

    1.2

    0.4

    7/16 Female

    5o101201400136138DK

    136 ~ 138

    23

    1.2

    0.4

    7/16 Female

    5o101201400150153DK

    150 ~ 153

    23

    1.2

    0.4

    7/16 Female

    5o101201400161163DK

    161 ~ 163

    23

    1.2

    0.4

    7/16 Female

    5o101201400186190DK

    186 ~ 190

    23

    1.2

    0.4

    7/16 Female

    Basic Specifications

    Dimension

    120*140*50mm

    Impedance

    50Ω

    Forward Power

    1KW

    Operating Temperature

    0 ~ +85℃

    Reverse Power

    10KW

    Storage Temperature

    -55~+125℃

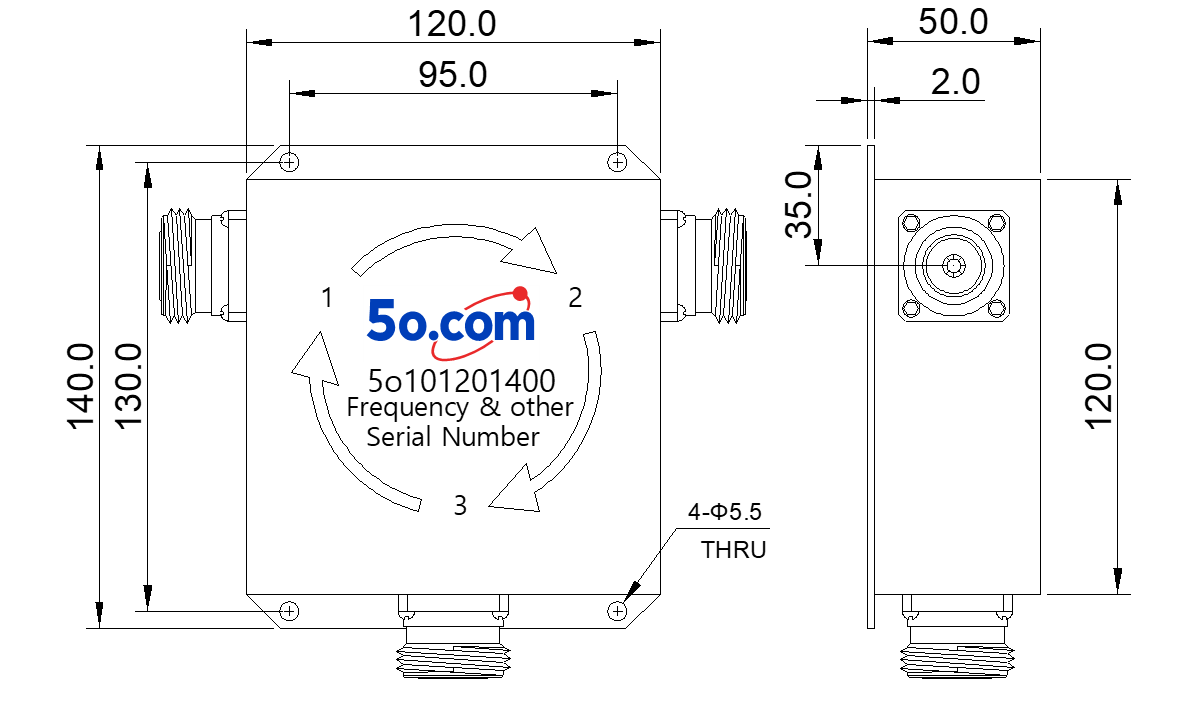

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (7/16 Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
