Coaxial Circulator 2.0-4.0GHz 5o101041100

Coaxial Circulator 2.0 ~ 4.0GHz

Application

▶RF power amplifier protection.

▶Digital, Satellite, Mobile Communication.

▶Medical, Communication, Security.

▶Military, Space and Commercial applications.

RF Characteristics

Part Number	Frequency Range (MHz)	Insertion Loss Max(dB)	Isolation Min(dB)	VSWR Max	Connector Type	Temp.(°C)
5o10104110020002200DK	2000 ~ 2200	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110022002400DK	2200 ~ 2400	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110023002500DK	2300 ~ 2500	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110024002600DK	2400 ~ 2600	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110025002700DK	2500 ~ 2700	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110027002900DK	2700 ~ 2900	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110028003000DK	2800 ~ 3000	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110029003100DK	2900 ~ 3100	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110033003500DK	3300 ~ 3500	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110034003600DK	3400 ~ 3600	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110036003800DK	3600 ~ 3800	0.4	18	1.3	7/16 Female	-55 ~ +85
5o10104110038004000DK	3800 ~ 4000	0.4	18	1.3	7/16 Female	-55 ~ +85

Basic Specifications

Dimension	10411048mm
Forward Power	3KW
Reverse Power	30KW
Connector Type	7/16(Male/Female)
Storage Temperature	-55℃~+125℃
Impedance	50Ω

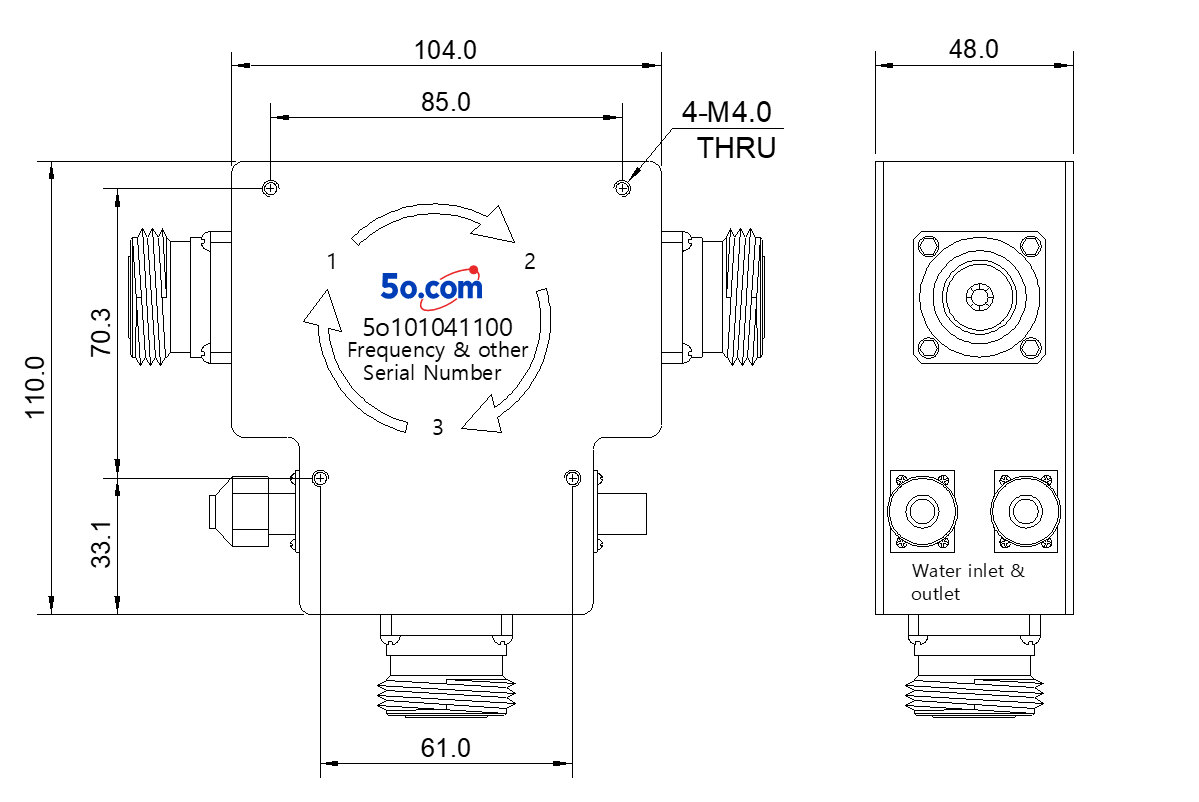

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)

Instructions

◆It can be dual junction or multiple for high isolation.

◆The connector can be selected according to requirements, Connect type (7/16 Male/ Female, etc.)

◆Only some common frequencies in the table can be produced according to the user's requirements.

◆It supports a one-year standard warranty.
