    Microstrip Isolator 14.0 ~ 40.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o055601416

    14.0 ~ 16.0

    20

    1.25

    0.5

    Microstrip

    5o055601517

    15.0 ~ 17.0

    20

    1.25

    0.5

    Microstrip

    5o055601518

    15.0 ~ 18.0

    18

    1.3

    0.6

    Microstrip

    5o05560177197

    17.7 ~ 19.7

    18

    1.3

    0.6

    Microstrip

    5o055601820

    18.0 ~ 20.0

    18

    1.3

    0.6

    Microstrip

    5o05560196212

    19.6 ~ 21.2

    18

    1.3

    0.6

    Microstrip

    5o055602123

    21.0 ~ 23.0

    18

    1.3

    0.6

    Microstrip

    5o055602527

    25.0 ~ 27.0

    18

    1.35

    0.7

    Microstrip

    5o055602729

    27.0 ~ 29.0

    18

    1.35

    0.7

    Microstrip

    5o055602831

    28.0 ~ 31.0

    18

    1.35

    0.7

    Microstrip

    5o055603033

    30.0 ~ 33.0

    18

    1.35

    0.7

    Microstrip

    5o055603337

    33.0 ~ 37.0

    18

    1.35

    0.7

    Microstrip

    5o055603740

    37.0 ~ 40.0

    18

    1.35

    0.7

    Microstrip

    Basic Specifications

    Dimension

    5*6*3.5mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating Temperature

    -55 ~ +85℃

    Reverse Power

    3W

    Storage Temperature

    -55 ~+125℃

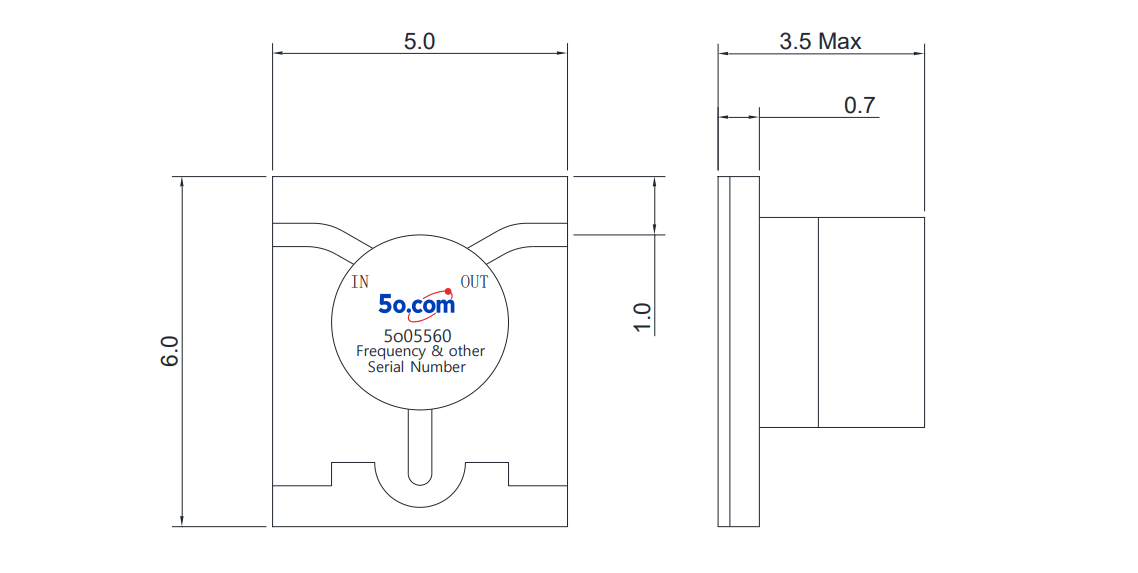

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
