    Microstrip Isolator 3.9 ~ 5.9GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o05121203943

    3.9 ~ 4.3

    20

    1.2

    0.4

    Microstrip

    5o0512120445

    4.0 ~ 4.5

    20

    1.2

    0.4

    Microstrip

    5o05121204254

    4.2 ~ 5.4

    18

    1.35

    0.6

    Microstrip

    5o05121204447

    4.4 ~ 4.7

    20

    1.2

    0.4

    Microstrip

    5o05121204459

    4.4 ~ 5.9

    17

    1.35

    0.7

    Microstrip

    5o0512120465

    4.6 ~ 5.0

    20

    1.2

    0.4

    Microstrip

    5o05121204852

    4.8 ~ 5.2

    20

    1.2

    0.4

    Microstrip

    Basic Specifications

    Dimension

    12*12*4mm

    Impedance

    50Ω

    Forward Power

    15W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    5W

    Storage Temperature

    -55 ~+125℃

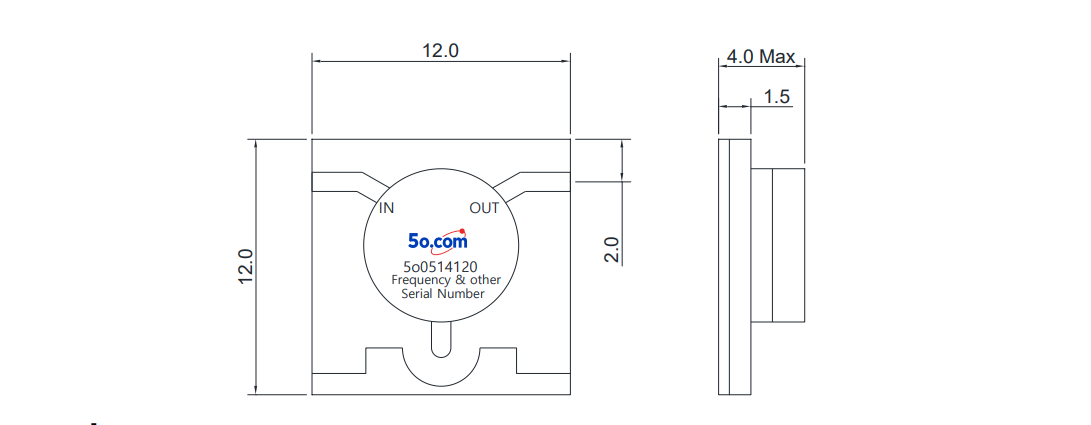

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
