Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

5o04150703748

703 ~ 748

18

1.3

0.5

SMT

5o04150758803

758 ~ 803

18

1.3

0.5

SMT

5o04150791862

791 ~ 862

20

1.25

0.5

SMT

5o04150824894

824 ~ 894

20

1.25

0.5

SMT

5o04150880960

880 ~ 960

20

1.25

0.5

SMT

5o0415012301250

1230 ~ 1250

20

1.25

0.4

SMT

5o0415013301390

1330 ~ 1390

20

1.25

0.4

SMT

5o0415014271517

1427 ~ 1517

20

1.25

0.4

SMT

5o0415015651585

1565 ~ 1585

23

1.2

0.3

SMT

5o0415016161620

1616 ~ 1620

23

1.2

0.3

SMT

5o0415017101785

1710 ~ 1785

23

1.2

0.3

SMT

5o0415017102170

1710 ~ 2170

18

1.3

0.5

SMT

5o0415018051880

1805 ~ 1880

23

1.2

0.3

SMT

5o0415019201990

1920 ~ 1990

23

1.2

0.3

SMT

5o0415021102170

2110 ~ 2170

23

1.2

0.3

SMT

5o0415023002500

2300 ~ 2500

23

1.2

0.3

SMT

5o0415024002600

2400 ~ 2600

23

1.2

0.3

SMT

5o0415024962690

2496 ~ 2690

23

1.2

0.3

SMT

5o0415025002700

2500 ~ 2700

23

1.2

0.3

SMT

5o0415027003100

2700 ~ 3100

20

1.25

0.5

SMT

5o0415029003300

2900 ~ 3300

20

1.25

0.4

SMT

5o0415031003600

3100 ~ 3600

20

1.25

0.4

SMT

5o0415033003600

3300 ~ 3600

23

1.2

0.3

SMT

5o0415037004000

3700 ~ 4000

23

1.2

0.3

SMT

5o0415042004400

4200 ~ 4400

21

1.2

0.3

SMT

5o0415044005000

4400 ~ 5000

20

1.25

0.4

SMT

5o0415048005000

4800 ~ 5000

23

1.2

0.3

SMT

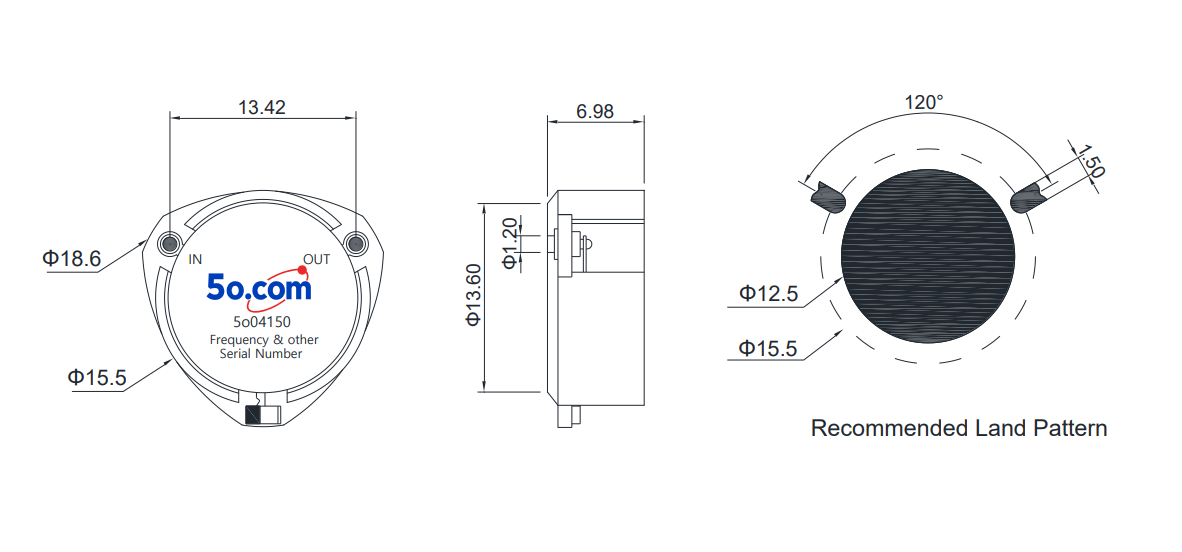

Dimension

Φ15.5*7mm

Impedance

50Ω

Forward Power

60W

Operating   Temperature

-40 ~ +85℃

Reverse Power

10W

Storage   Temperature

-55~+125℃
